Grandstream GWN7660ELR Outdoor Enterprise-Grade Wi-Fi 6 Access Point
Your price incl. VAT (20.0%)
125.62 EUR
✅ Availability in an external Partner
Planned Delivery Date by Courier to you 29-10-2025
You have a choice of 2 variants
182.74 EUR excl. VAT
Product description
The GWN7660ELR is an enterprise-grade long-range Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments.

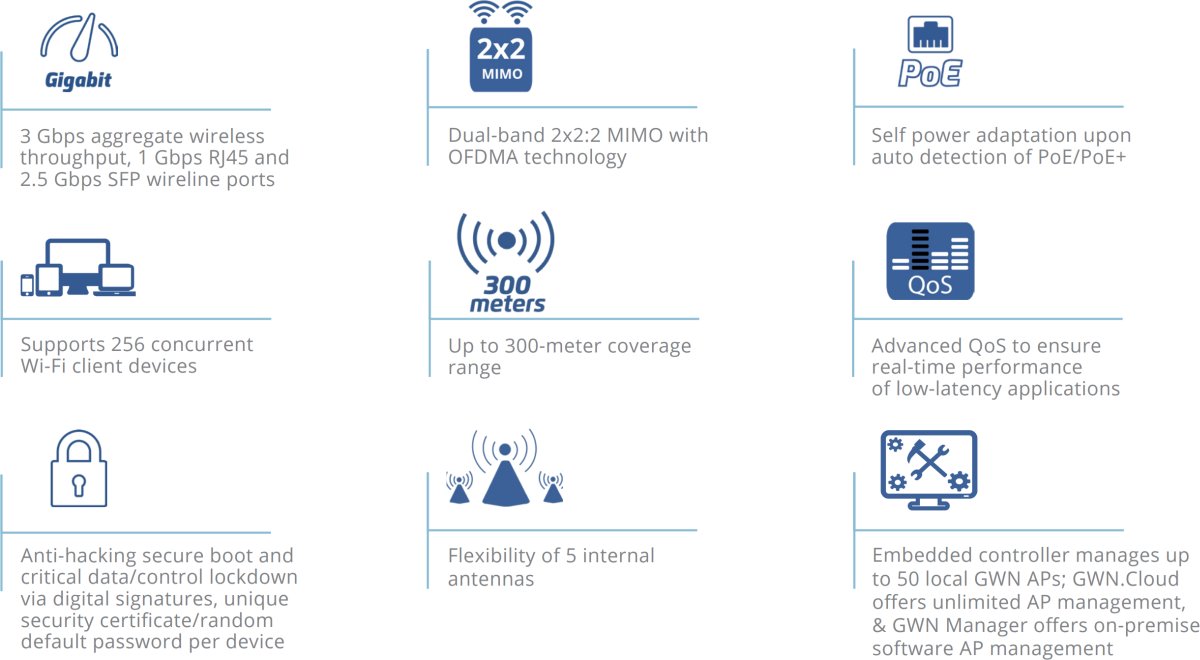

Key features
- Up to 3 Gbps aggregate wireless throughput, 1 Gbps RJ45 and 2.5 Gbps SFP wireline ports
- Dual-band 2x2 MIMO with OFDMA technology
- Self-power adaptation upon auto-detection of PoE or PoE+
- Support 256 concurrent Wi-Fi client devices
- Up to 300-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Flexibility of 5 internal antennas
- Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
Package contents
- Device
- Mounting Kits
- Quick Installation Guide
Download
Technical parameters
LAN ports
Power over Ethernet
802.3af, 802.3at
Protection class
IP67
Operating mode
Access Point
Wireless frequency
2.4 + 5 GHz (dual band), Bluetooth
WiFi standards
802.11n, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
2402
Transmission speed - 2.4GHz [Mb/s]
574
Tx power 2.4GHz [dBm]
27
Tx power 5GHz [dBm]
26
Security
WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
5
Purpose
Outdoor
Antenna gain [dBi]
5,5, 6
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Optical interfaces
(1) 1G/2.5Gbps
Max. power consumption [W]
13
Buttons
Reset
Operating temperature [°C]
-30 up to 60
Weight [g]
1000
Width [mm]
230
Height [mm]
270
Depth [mm]
57
IPv6 support
Yes
