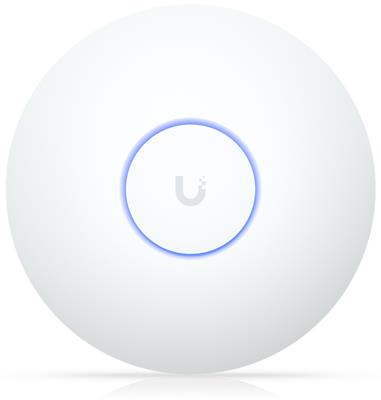

Ubiquiti U7-LR - UniFi 7 Long-Range Access Point

Product description

U7-LR is a high-performance Access Point leveraging advanced WiFi 7 technology to provide powerful wireless coverage to enterprise environments. It delivers an aggregate radio rate of up to 5.0 Gbps with 5 GHz (3x3 MU-MIMO) and 2.4 GHz 2x2 MU-MIMO radios. The U7-LR seamlessly blends into any environment.

Features

• Five-stream high-efficiency Wi-Fi 7 technology
• 5 GHz band 3x3 MU-MIMO with radio rate of 4.3 Gbps
• 2.4 GHz band 2x2 MU-MIMO with radio rate of 688 Mbps
• Powered with 802.3af PoE / passive 43V - 57V DC
• Managed by UniFi Network Controller version: 9.0.114 or higher

Unit central management

UniFi APs doesn't have own web GUI and you manage them via UniFi Controller, which you can download on UBNT websites here: http://www.ubnt.com. Or you can manage UAP devices using UniFi Cloud Key which has UniFi Controller preinstalled. Additional benefit is fact that UniFi Controller software is free of costs and includes advanced functions without limitations.

General advantages of UniFi products

• Zero Handoff Roaming
• Wireless uplink
• Up to 8 SSID
• Detailed traffic stats
• Guest network
• Load balance
• Speed limitaions for each SSID

Package contains

• Device
• Ceiling / wall mount kit
• Drilling template
• Screws

Download

https://dl.ui.com/qig/u7-lr/#index

Installation guide

https://techspecs.ui.com/unifi/wifi/u7-lr#datasheet

Datasheet
