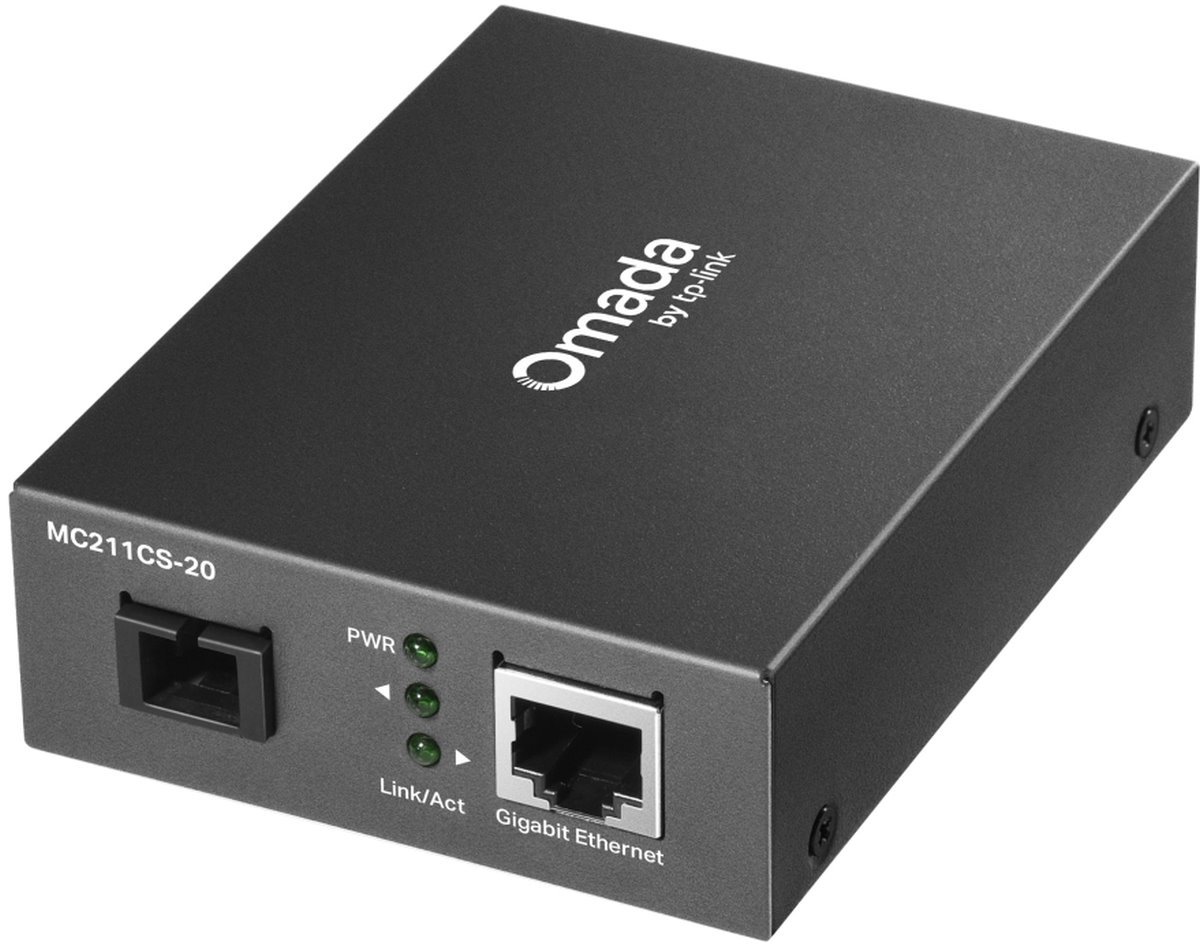

TP-Link MC211CS-20 Omada Gigabit WDM media converter
Your price incl. VAT (20.0%)
30.05 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 12-11-2025
You have a choice of 4 variants
Masterlan fiber optic patch cord, SCupc-SCupc, Singlemode 9/125, simplex, 2mSCupc/SCupc-SSM.9/125-02
1.37 EUR excl. VAT
Masterlan fiber optic patch cord, SCupc-SCupc, Singlemode 9/125, simplex, 3mSCupc/SCupc-SSM.9/125-03
1.46 EUR excl. VAT
Masterlan fiber optic patch cord, SCupc-SCupc, Singlemode 9/125, simplex, 7mSCupc/SCupc-SSM.9/125-07
2.04 EUR excl. VAT
Masterlan fiber optic patch cord, SCupc-SCupc, Singlemode 9/125, simplex, 15mSCupc/SCupc-SSM.9/125-15
2.87 EUR excl. VAT
Masterlan fiber optic patch cord, LCupc-SCupc, Singlemode 9/125, simplex, 1mLCupc/SCupc-SSM.9/125-01
1.10 EUR excl. VAT
Masterlan fiber optic patch cord, LCupc-SCupc, Singlemode 9/125, simplex, 2mLCupc/SCupc-SSM.9/125-02
1.22 EUR excl. VAT
Product description
MC211CS-20 is an optical-metallic WDM converter from RJ45 to optical SC connector. Maximum throughput is 1000Mbps FD, which is also adapted to the Ethernet port, which can communicate with your device with 10/100/1000 Mbps speed. The converter can be used up to a distance of 20km with a single-mode (9/125um) optical fiber with one SC connector. The wavelength is 1550 / 1310 nm (Tx/Rx) and for proper functionality it is necessary to have on opposite side model MC212CS-20, which has opposite Tx and Rx than this model.
Package contents
- Device
- Power adapter
- Installation Guide
Download
Technical parameters
LAN ports
For cable type
Single Mode
Optical Connectors
(1) SC
Transmission speed
1 Gbps
Wavelength - Tx/Rx [nm]
1550 / 1310
Distance [km]
20
Power type
DC connector
LAN speed
(1) 10/100/1000Mbps
Optical interfaces
(1) 1000Mbps
Max. power consumption [W]
1,8
Power via connector/terminal
9V / 0,6A
Operating temperature [°C]
-5 up to 50
Width [mm]
73
Height [mm]
27
Depth [mm]
95
