Huawei OptiXstar F600-30-1GH, Optical Access point
Your price incl. VAT (20.0%)
143.48 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
Product description

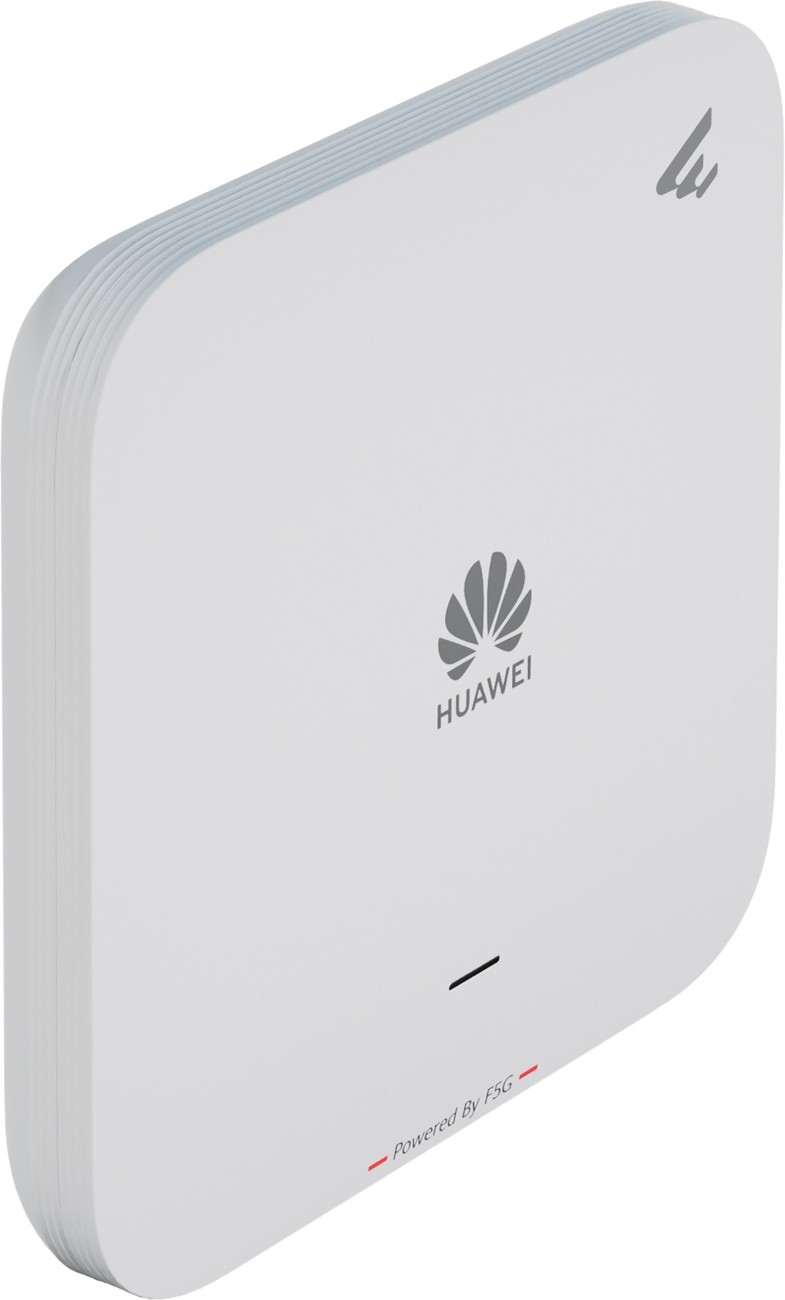

The Huawei OptiXstar F600C-30-1GH is an optical access point designed for MiniFTTO applications. When used with a compatible cable and active component, it supports PoF (Power over Fiber) technology. WiFi 6 with 160 MHz channel support offers modulation speeds of 574 / 2402 Mbps. In addition to the optical GPON port, the access point is also equipped with one GE Ethernet port.

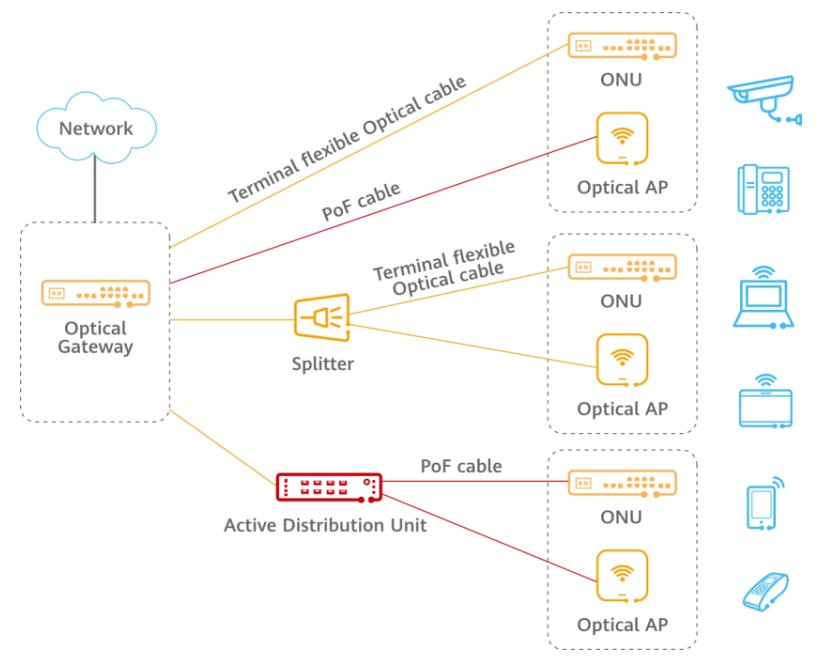

To power the device via the optical port, use Huawei photoelectric cables and a PoF power distributor. Configuration is handled by the F1001 optical gateway, enabling centralized wireless network management including roaming. The access point provides reliable and stable gigabit connectivity for your wireless devices, supporting up to 64 simultaneous connections.
Download
Technical parameters
LAN ports
Power over Fiber
56V
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
2402
Transmission speed - 2.4GHz [Mb/s]
574
Tx power 2.4GHz [dBm]
23
Tx power 5GHz [dBm]
23
Security
WPA3 AES
Optical Connectors
(1) XC
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Built-in
Transmission speed
2.488 / 1.244 Gbps
Wavelength - Tx/Rx [nm]
1490 / 1310
Antenna gain [dBi]
5
Transfer type
GPON
Polishing type
UPC
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Max. LAN ports speed
1G
PON SFP cages
1
Receiver sensitivity [dBm]
-27
Max. power consumption [W]
11
Power via connector/terminal
12V / 1,5A
Buttons
Reset
Operating temperature [°C]
-10 up to 50
Width [mm]
200
Height [mm]
200
Depth [mm]
38
