MikroTik RB924iR-2nD-BT5&BG770A&R11e-LR8G, KNOT LR8G kit
Ordered for stock
Planned Delivery Date by Courier to you 01-04-2026
Product description

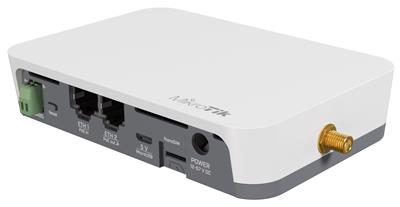

The MikroTik KNOT LR8G kit is a compact, ready-to-use gateway designed for LoRa applications. It is engineered to provide affordable and reliable connectivity even in remote locations. It supports LTE CAT-M1 and NB2, Bluetooth 5.2, 2.4 GHz WiFi, GPS, and comes equipped with two Ethernet ports (1x PoE-in, 1x PoE-out), making it a flexible solution for any IoT deployment.
Mobile internet connectivity via CAT-M1 and NB2 allows significant cost savings while enabling remote monitoring and management of devices without the need for expensive data plans or full LTE coverage.
Whether you are monitoring critical data in hospitals, managing vending machines in shopping malls, or collecting sensor data in the middle of fields — the KNOT LR8G ensures continuous connectivity.
Key Features
- Concurrent GPS and LTE CAT-M connection
- Versatile power options

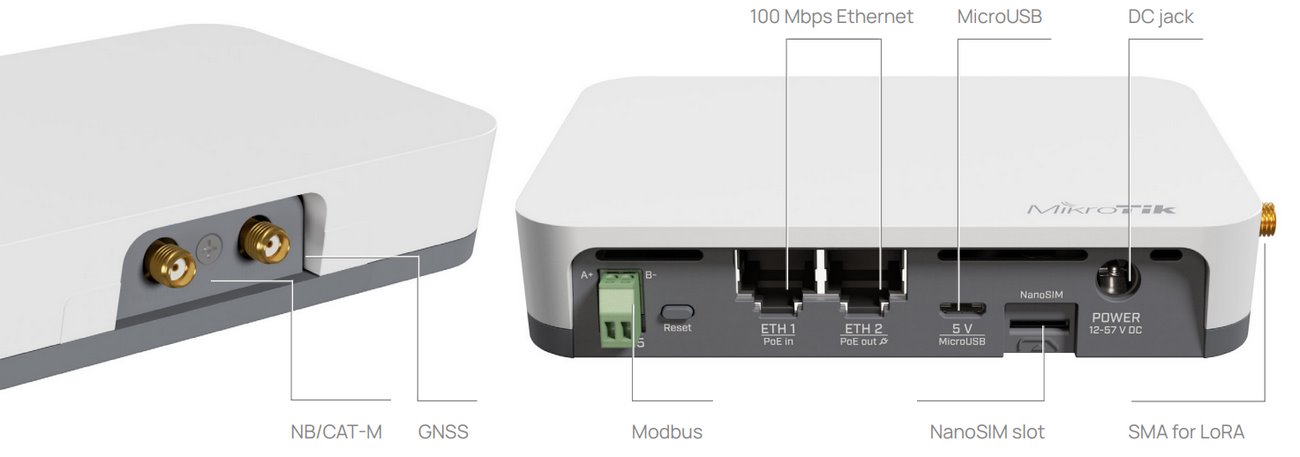

- SMA connectors for all main interfaces
- Improved LoRa reception at 868 MHz
- Lower price, same quality and reliability
- Powered by RouterOS v7
Track moving assets using GPS combined with LTE CAT-M1. An ideal solution for service vehicles, containers, or other mobile equipment.

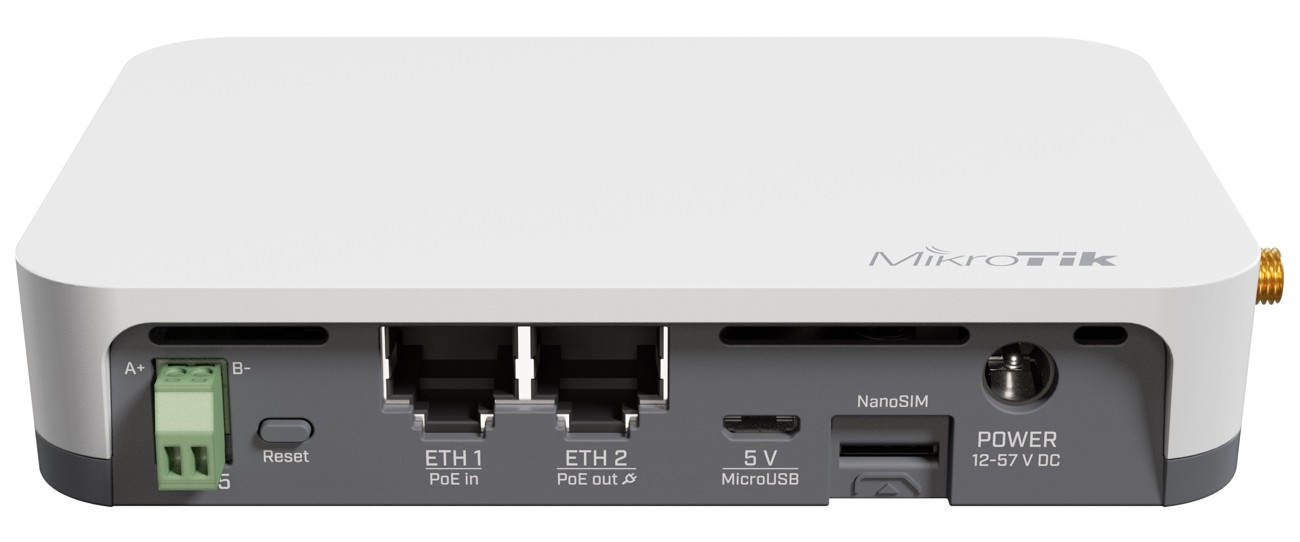

Choose between powering via PoE, DC jack, or MicroUSB — plus you can power additional devices through the second Ethernet port with PoE-out functionality (max. 650 mA for voltage <30 V, max. 450 mA for voltage >30 V).

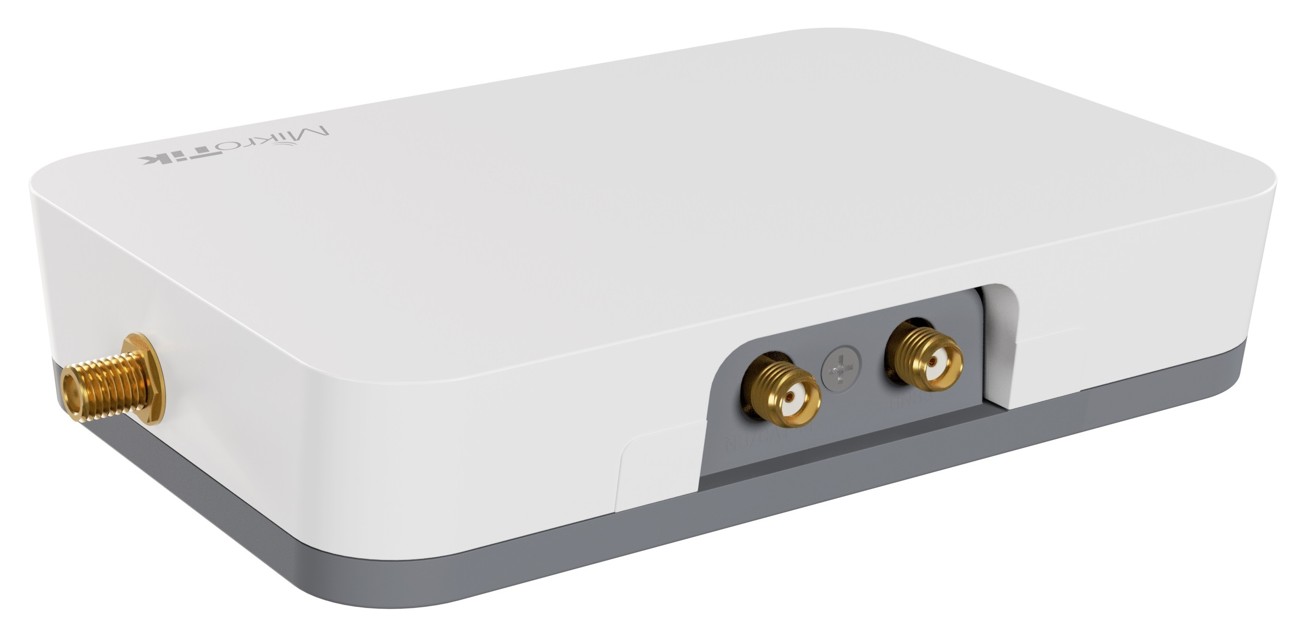

Easy antenna connection for LTE, GPS, and LoRa.
Enhanced sensitivity for stronger signal and longer range, even in interference-heavy environments.
A cost-effective solution for large-scale deployments without compromising performance.
Provides full control, user scripting, and advanced routing features.
Practical Use Cases
- Hospital equipment monitoring – attach Bluetooth beacons to critical devices, deploy KNOT LR8G in monitored areas, and maintain real-time inventory tracking via GPS and LTE CAT-M.
- Cold chain temperature control – use wired Modbus sensors to monitor temperature and humidity inside refrigerated containers. KNOT converts Modbus data to TCP and securely transmits it via MQTT or HTTPS.

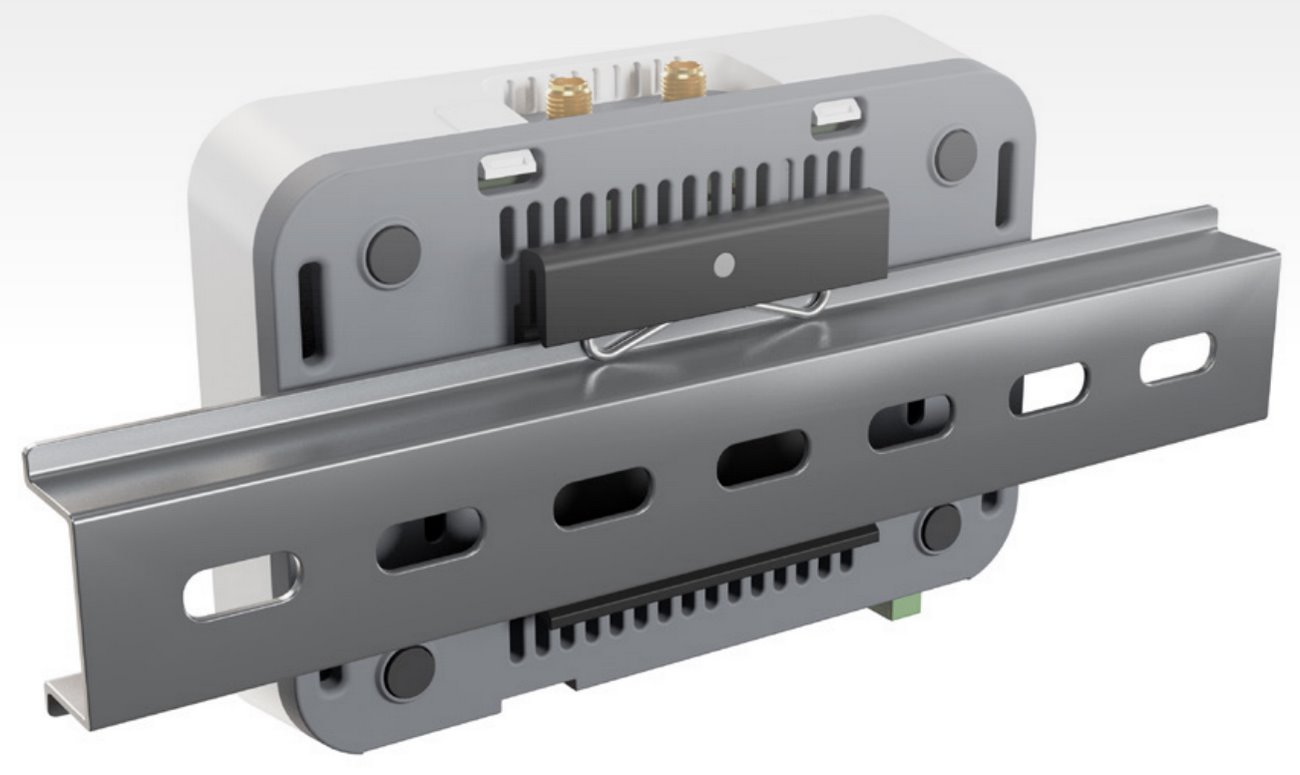

- Industrial automation – connect legacy wired sensors and actuators to the cloud. With DIN rail mounting capability, KNOT easily integrates into industrial cabinets and manufacturing environments.
With a power consumption of only 6 W and compact dimensions (122 x 87 x 26 mm), the KNOT is the perfect choice for installations requiring space and power savings while working within a limited budget — without sacrificing performance.
Package Contents
- Device
- 24 V / 1.2 A power adapter
- DIN rail mount
- Wall mount kit
