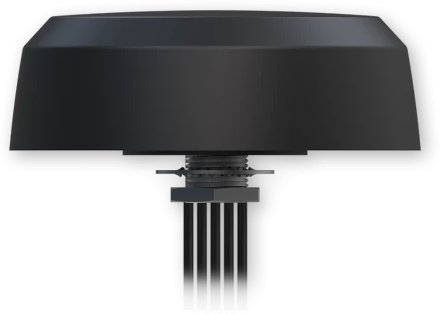

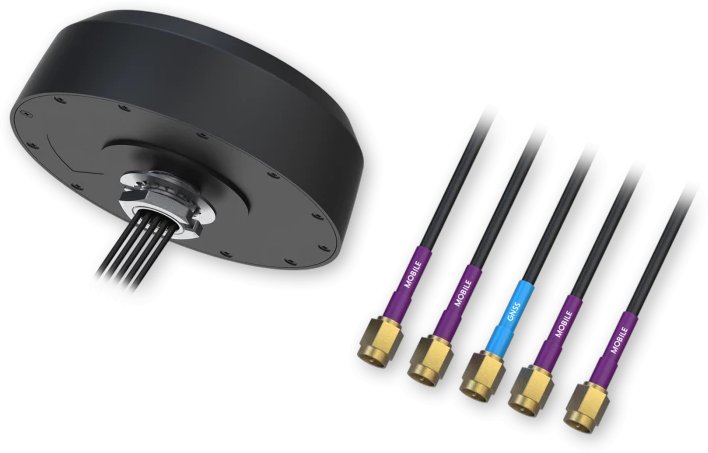

Teltonika PR1KC647 5G Combo MIMO/GNSS Mobile Roof SMA Antenna
Your price incl. VAT (20.0%)
0.00 EUR
Ordered for stock
Planned Delivery Date by Courier to you 17-09-2025
Product description
5G Mobile MIMO Antenna
- Frequency range: 600 ~ 960, 1400 ~ 6000 MHz
- Polarization: Linear
- Radiation pattern type: Omni-directional
- Gain: Max 4.9 dBi
- V.S.W.R: < 3.2
- Impedance: 50 ?
- Connector type and count: 4x SMA Male
GNSS Antenna
- Frequency range: 1164 ~ 1189, 1559 ~ 1606 MHz
- Polarisation: RHCP
- Radiation pattern type: Directional
- Gain: 17 ± 2 dB
- V.S.W.R: < 2
- Impedance: 50 Ohm
- Supply voltage: 3 - 5 VDC
- Current consumption: 16 ± 3 mA
- Connector type and count: 1x SMA Male

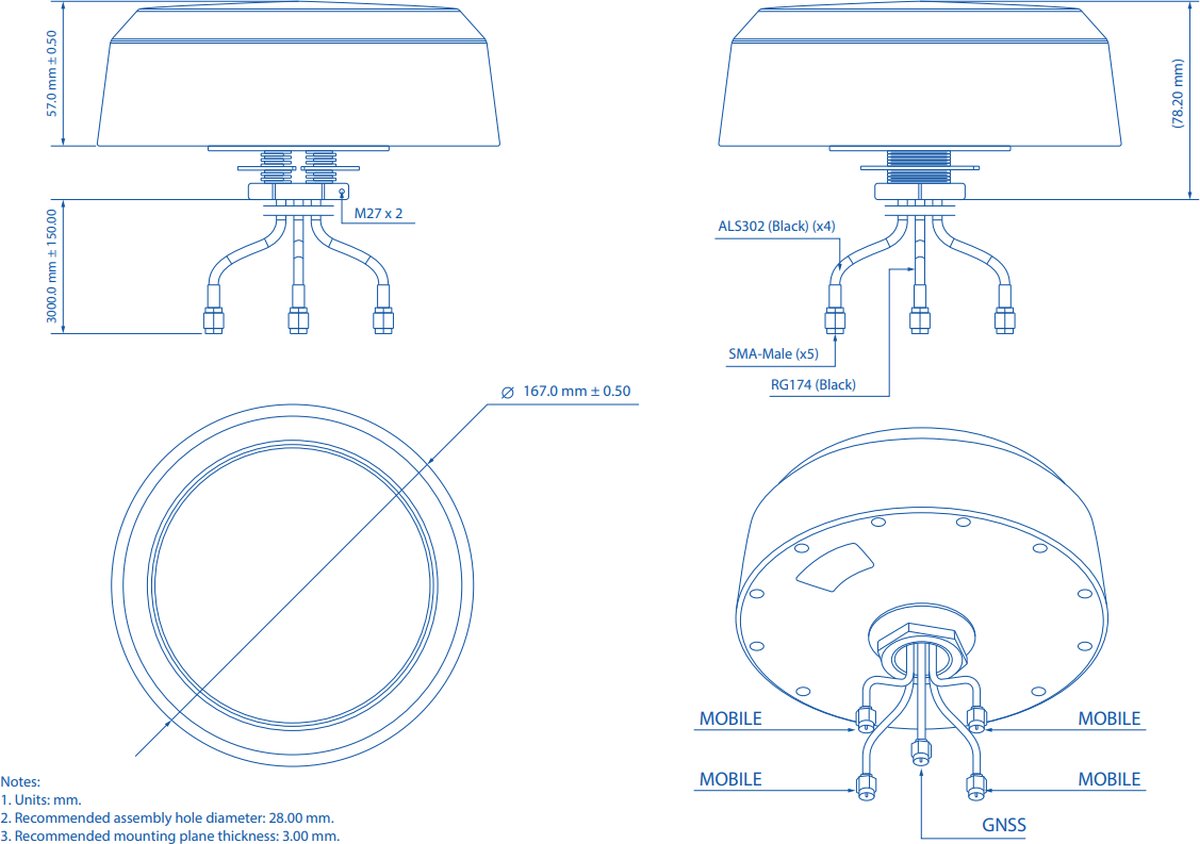

Mechanical/Environmental

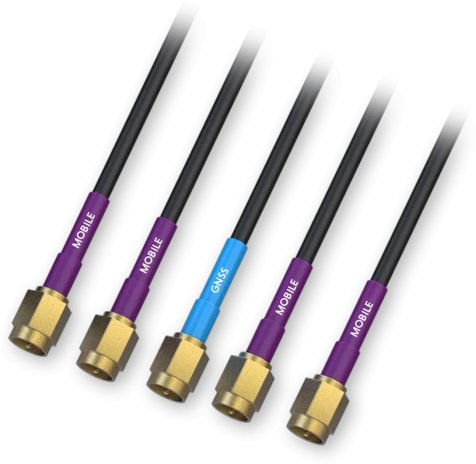

- Cable: 4x ALS302, 1x RG174, 3000 mm
- Operating temperature: -40 °C to +85 °C
- Mounting method: Screw (M27 nut)
- IP rating: IP67 (after installation) / IP69K (after installation)
- Weight: 780 g
- RoHS compliant: Yes
