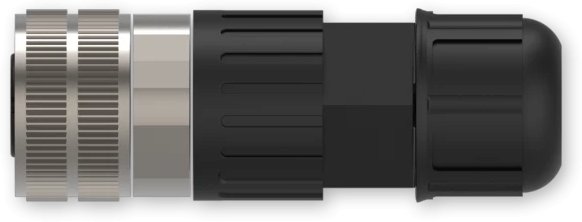

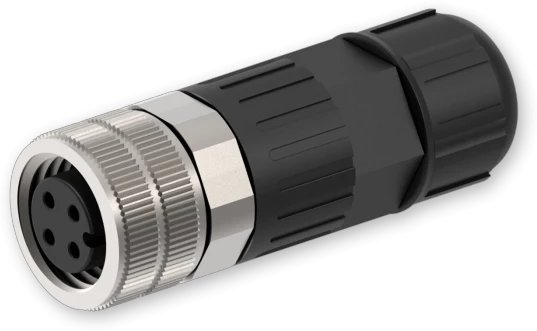

Teltonika PR40119K M12 A, 4-Pin, Female Connector
Your price incl. VAT (20.0%)
8.11 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 12-11-2025
Product description
Mechanical/Environmental
- Voltage rating: 250 V
- Current rating: 4 A
- Contact resistance: less 10 mOhm
- Wire range AWG: 24 (0.5 mm2) / contact
- Temperature range: -25 °C to +85 °C
- Mounting method: Screwable (M12)
- Life - number of mating cycles: > 500
- IP rating: IP67 (when plugged in) / IP68 (when plugged in)
- Housing material: Nickel plated brass / plastic
- Seals for cable outer diameter: diameter 4.0 mm - 8.0 mm
- Weight: 26 g
- RoHS: Yes
- REACH: Yes
- UL 94 V-0: Yes
Download
Technical parameters
LAN ports
Protection class
IP67
Voltage rating [V]
250

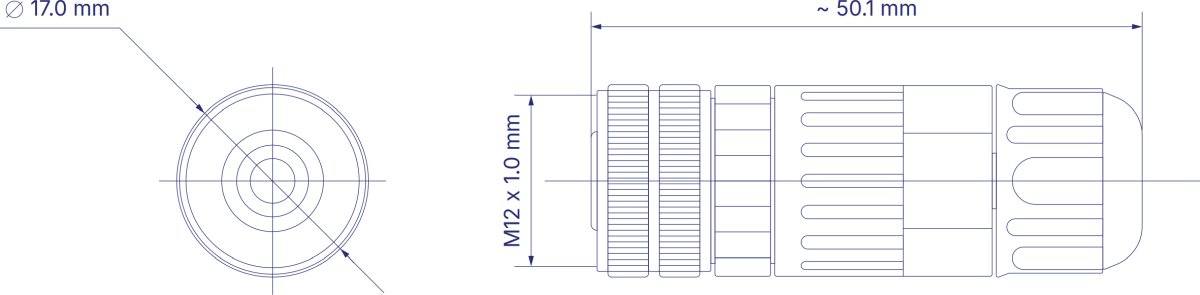

Length [mm]
50,1
Operating temperature [°C]
-25 up to 85
Weight [g]
26
Width [mm]
17
Color
Silver / black
