Teltonika SWM281 Industrial managed switch, 24x GLAN, 4x SFP
Your price incl. VAT (20.0%)
199.43 EUR
Ordered for stock
Planned Delivery Date by Courier to you 26-11-2025
You have a choice of 3 variants
4.71 EUR excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDMML-S3155-20
4.49 EUR excl. VAT
4.62 EUR excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDMML-S5531-20
6.12 EUR excl. VAT
Product description
The SWM281 is an L2 managed switch with added L3 functionality, tailored for complex networking scenarios. With 24 Gigabit Ethernet ports and 4 dedicated SFP ports, it delivers high-bandwidth performance and reliable fibre optic communication for large-scale deployments. With support of PROFINET & other industrial protocols, this enterprise-grade 24-port switch ensures smooth integration into automated environments.
FREE 2 years of RMS Management!
Key features
- Hybrid Connectivity 24 Gigabit Ethernet with 4 SFP ports for density and long-distance connectivity
- L2+: Advanced routing protocols, VLAN segmentation
- Cloud-enabled: Shipped with 2 years of RMS Management
- Protocols: Profinet, MRP, and EtherNet/IP for mixed industrial environments

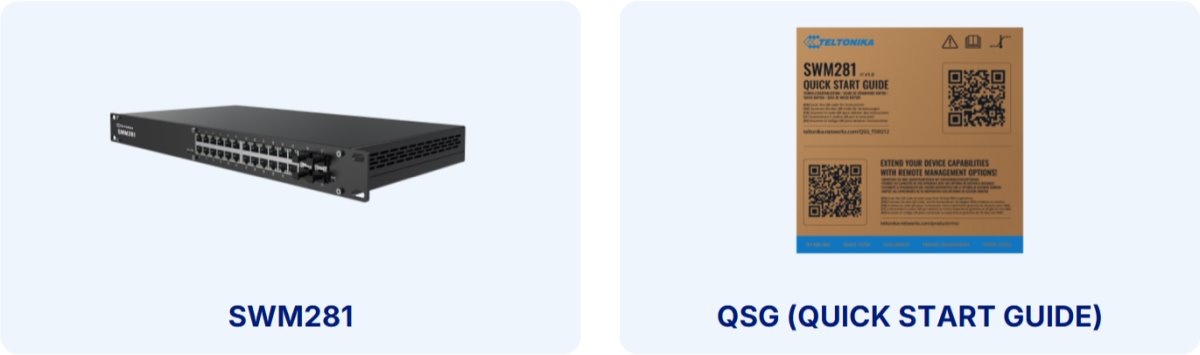

Package contents
- Device
- QSG (Quick Start Guide)
Download
Technical parameters
LAN ports
Switchning capacity [Gbps]
56
Design
Rackmount
MAC address table
8000
Jumbo frame [Bytes]
10000
Packet forwarding rate [Mpps]
83.33
Web management
Yes
Management
Web management, SSH, Teltonika RMS
Features
VLAN, QoS, L2+
Power type
Mains power (230V)
Fans
No
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
Max. LAN ports speed
1G
SFP cages
4
Optical interfaces
(4) 1000Mbps
Max. power consumption [W]
20
Chassis design
Metal
Power via connector/terminal
100-240 V AC~50/60 Hz
Buttons
Reset
Operating temperature [°C]
0 up to 50
Weight [g]
1853
Height [mm]
44
Width [mm]
483
Depth [mm]
234
Default IP address
192.168.1.2
Default login and password
admin / (preset password, see label/engraving)
