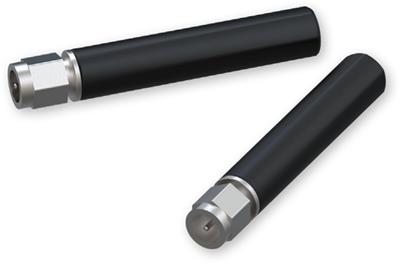

Teltonika PR1CS530 5G straight compact Mobile SMA antenna
Your price incl. VAT (20.0%)
4.20 EUR
Ordered for stock
Planned Delivery Date by Courier to you 03-12-2025
460.09 EUR excl. VAT
Product description
Technical data
- Frequency range: 698 ~ 960 MHz, 1710 ~ 2690 MHz, 3300 ~ 6000 MHz
- Polarisation: Linear
- Radiation pattern type: Omni-directional
- Gain: 2.8 dBi
- V.S.W.R: 7.9
- Efficiency: 68.9%
- Impedance: 50 Ohm
- Connector type: SMA Male
- Weight: 5.1 g
- Operating temperature: -40 °C ~ +85 °C
- Ingress Protection Rating: IP53
- RoHS compliant: YES
Download
Technical parameters
LAN ports
Protection class
IP53
Connector
SMA male
Impedance [ohms]
50
Purpose
Indoor
Antenna gain [dBi]
2,8
Operating temperature [°C]
-40 up to 85
Weight [g]
5
Width [mm]
9
Height [mm]
55
Depth [mm]
9
