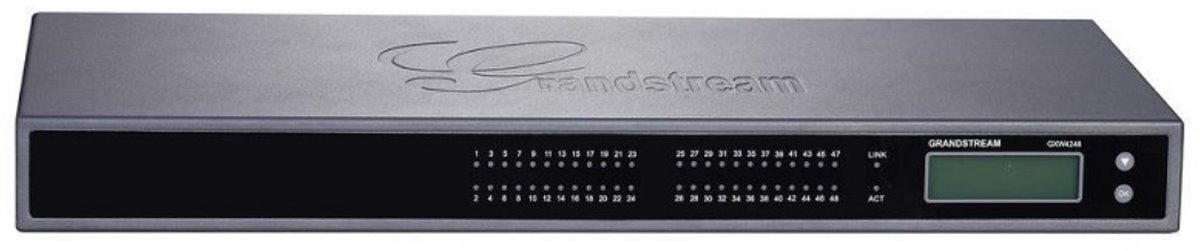

Grandstream GXW4248 FXS gateway
Your price incl. VAT (20.0%)
995.89 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
You have a choice of 3 variants
37.08 EUR excl. VAT
46.52 EUR excl. VAT
47.89 EUR excl. VAT
248.48 EUR excl. VAT
Product description
The GXW4200 v2 high-density FXS gateway series enables businesses of all sizes to create a cost-effective hybrid IP and analog telephone system that offers the benefits of VoIP communications and takes advantage of Gigabit speeds while preserving investment on existing analog phones, fax machines and legacy PBX systems. The GXW4200 series includes 16/24/32/48 FXS ports, a Gigabit network port and features broad interoperability with most service providers, soft-switches and SIP-based environments.

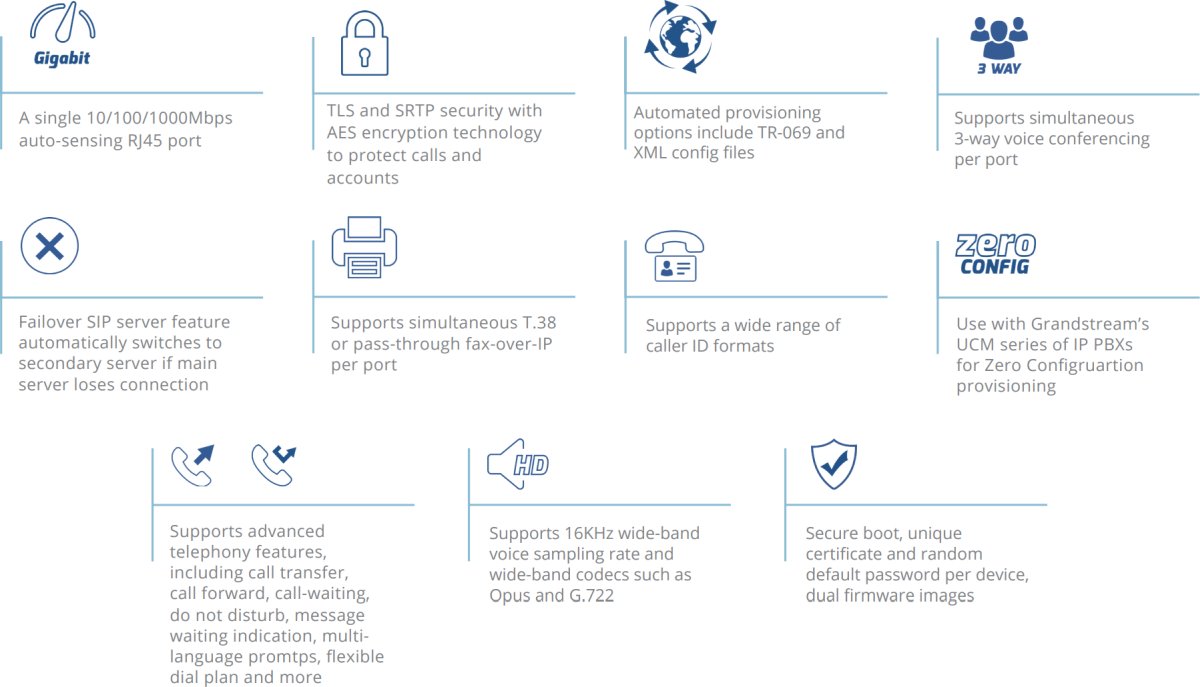

Key features
- 48 FXS ports and 2x 50-pin Telco connectors
- 1 Gigabit network port
- 132x48 backlit graphic display with support for multiples languages
- 4 SIP server profiles per system, independent SIP account per port
- Designed and tested for full interoperability with leading IP-PBXs, soft-switches and SIP-based environments
- Advanced security protection with SRTP/TLS/HTTPS
- Supports 16KHz wide-band voice sampling rate and wide-band codecs such as Opus and G.722
- Carrier-grade security features including secure boot, unique certificate and random default password per device, dual firmware images
- Supports simultaneous 3-way voice conferencing per port
Package contents
- Power adapter
- (2) Telco cable
- Ethernet cable
- Rack mount
- Quick Installation Guide
Download
Technical parameters
LAN ports
Design
Desktop, Rackmount
Codecs
G.722, iLBC
Web management
Yes
Management
Web management, SSH
LED indication
Yes
LAN speed
(1) 10/100/1000Mbps
Display resolution
128 x 32
Power via connector/terminal
24V / 6,25A
Operating temperature [°C]
0 up to 40
Weight [kg]
3,4
Width [mm]
440
Height [mm]
44
Depth [mm]
255
