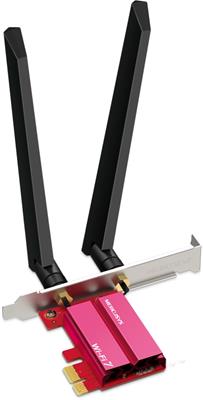

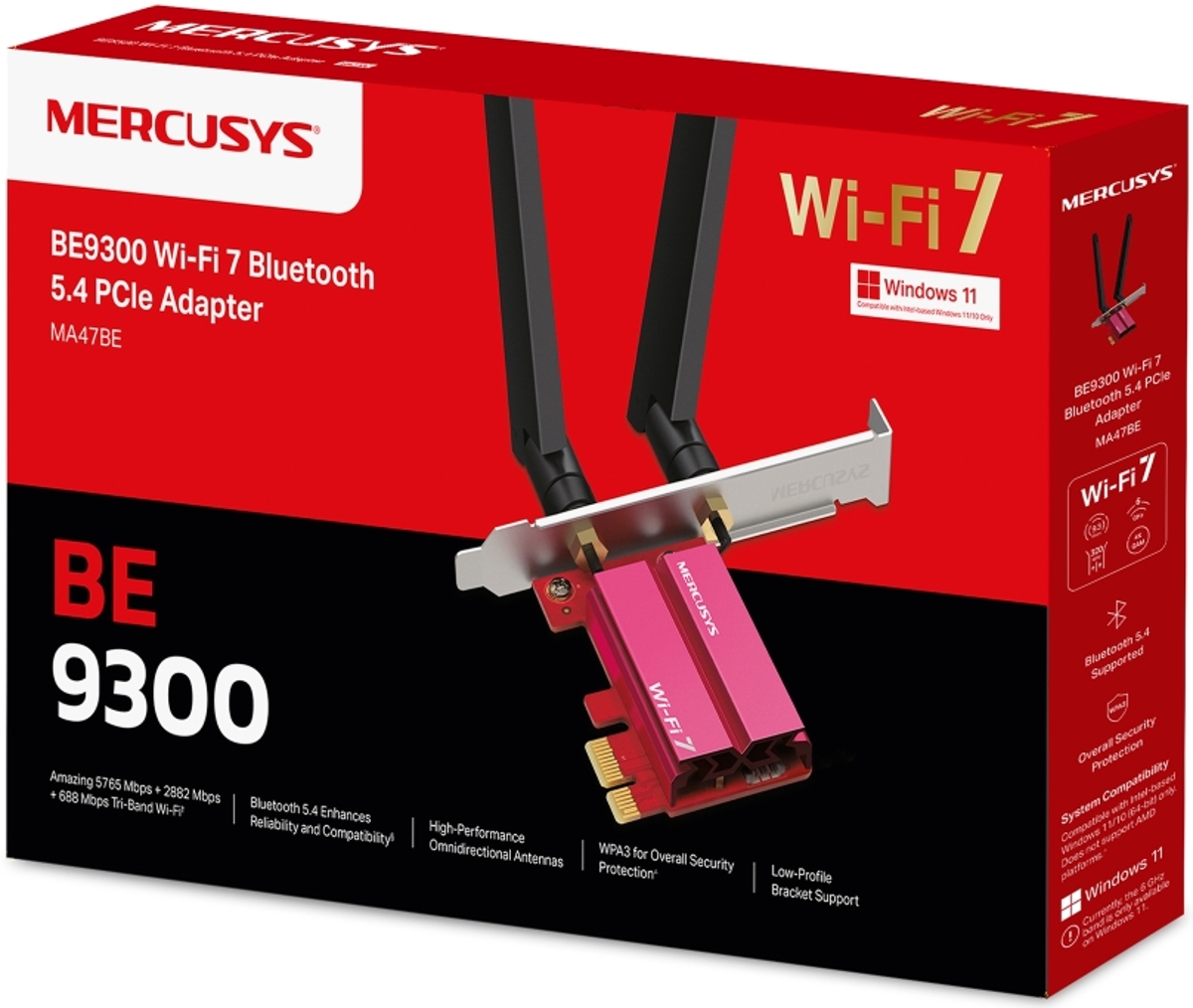

MERCUSYS MA47BE - Wi-Fi 7 and Bluetooth PCIe Adapter

MERCUSYS MA47BE - Wi-Fi 7 and Bluetooth PCIe Adapter
Your price incl. VAT (20.0%)
48.10 EUR
❌ The item is not available. There is no option to order.
Delivery No confirmed delivery date
MERCUSYS
Manufacturer
Product number
MA47BE
Product Code
RL030.204
Warranty
36 months

Product description

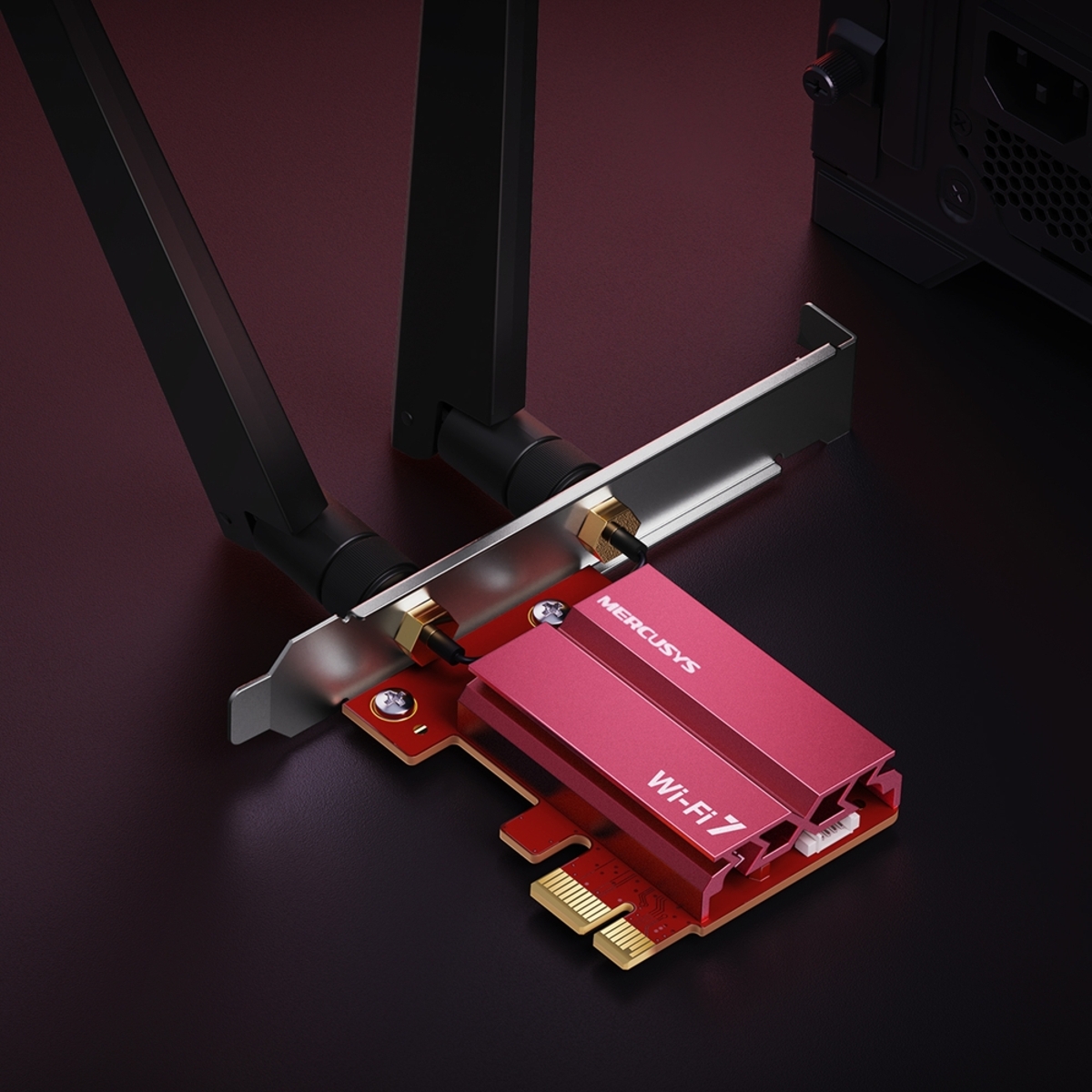

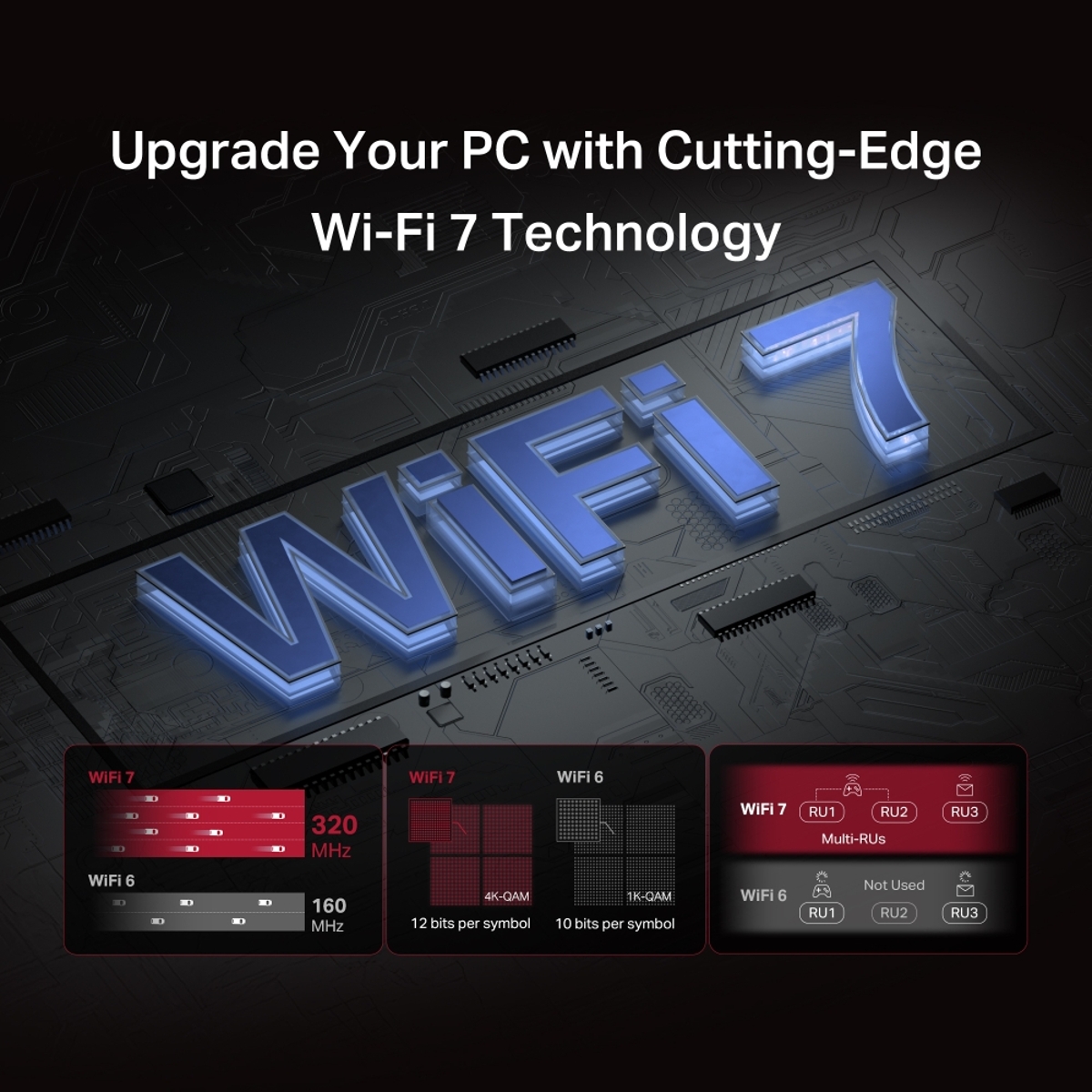

The MERCUSYS MA47BE equips your computer with Wi-Fi 7 technology and the 6 GHz band, allowing you to fully utilize the potential of your Wi-Fi 7 router. With high-speed Tri-band Wi-Fi, it can handle all your online activities with ease, from streaming HD videos to gaming and browsing the web. In addition, it features Bluetooth 5.4 technology for faster and more stable connections to peripherals such as headphones, keyboards, and game controllers.

MERCUSYS MA47BE

Key features

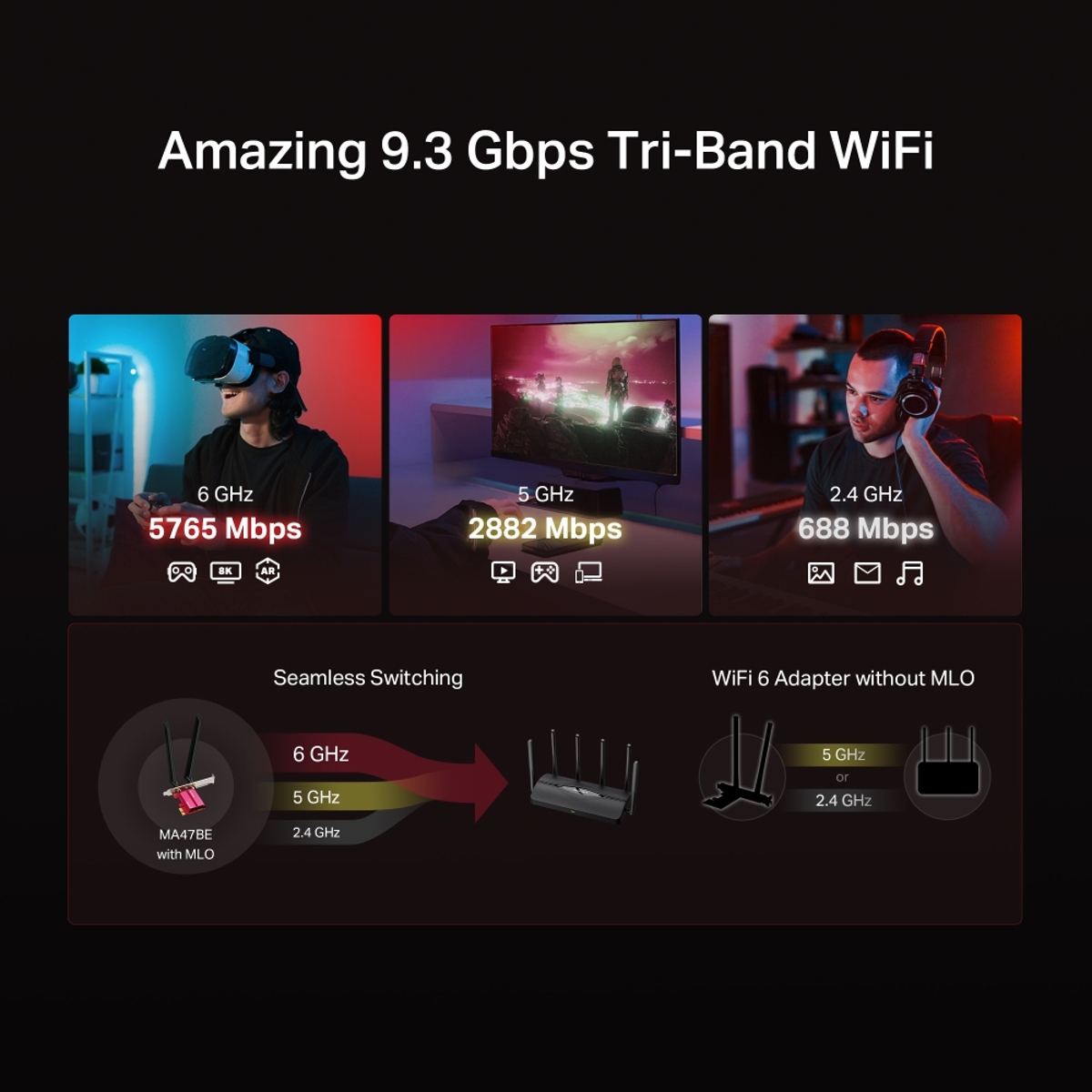

  • Unparalleled Tri-Band Speed - boost your overall speeds up to 5765 Mbps (6 GHz) + 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz)
  • Bluetooth 5.4 - improved speed, range, security, and reliability over the previous generation

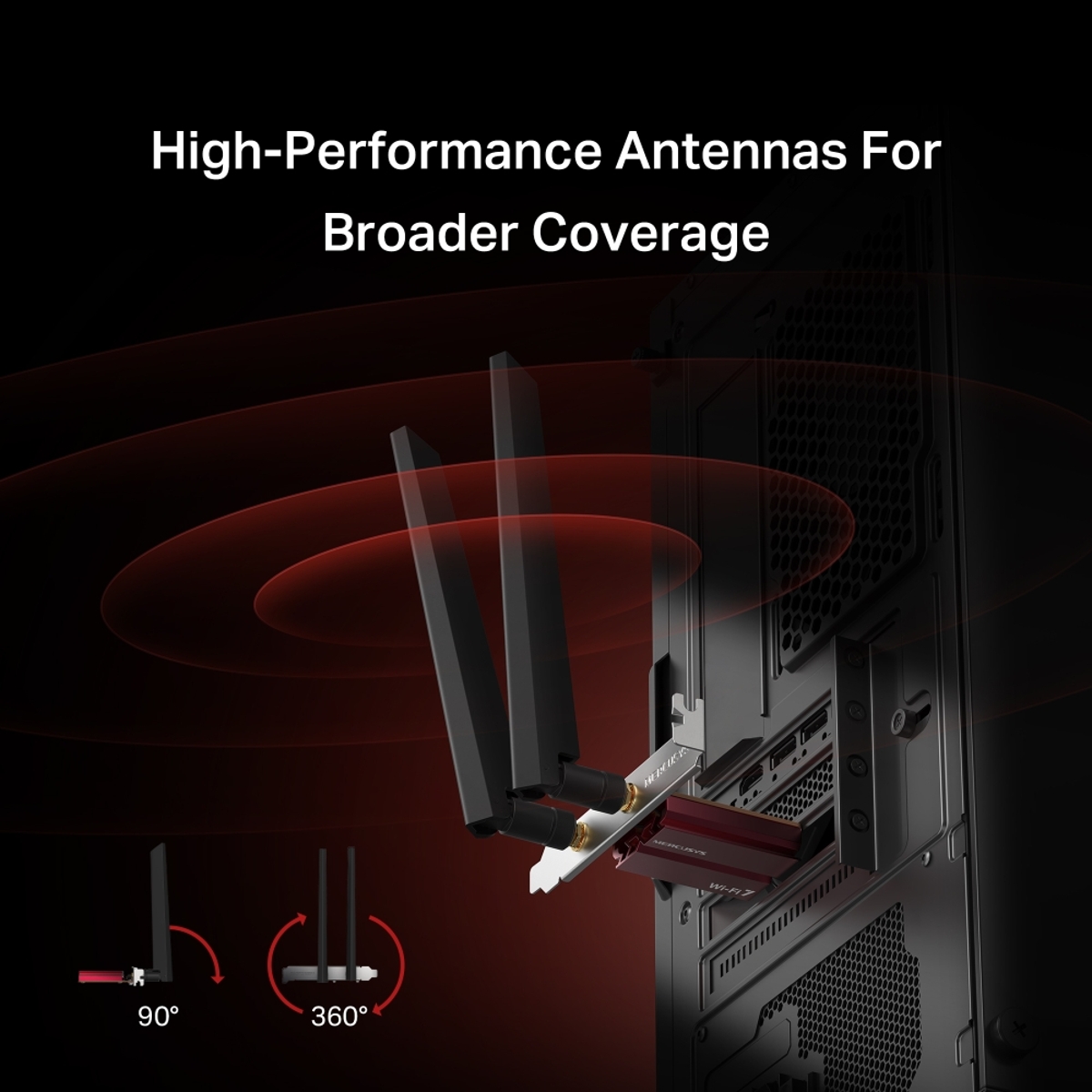

  • Broader Coverage - two high-performance omnidirectional antennas ensure stronger signal transmissions and reception

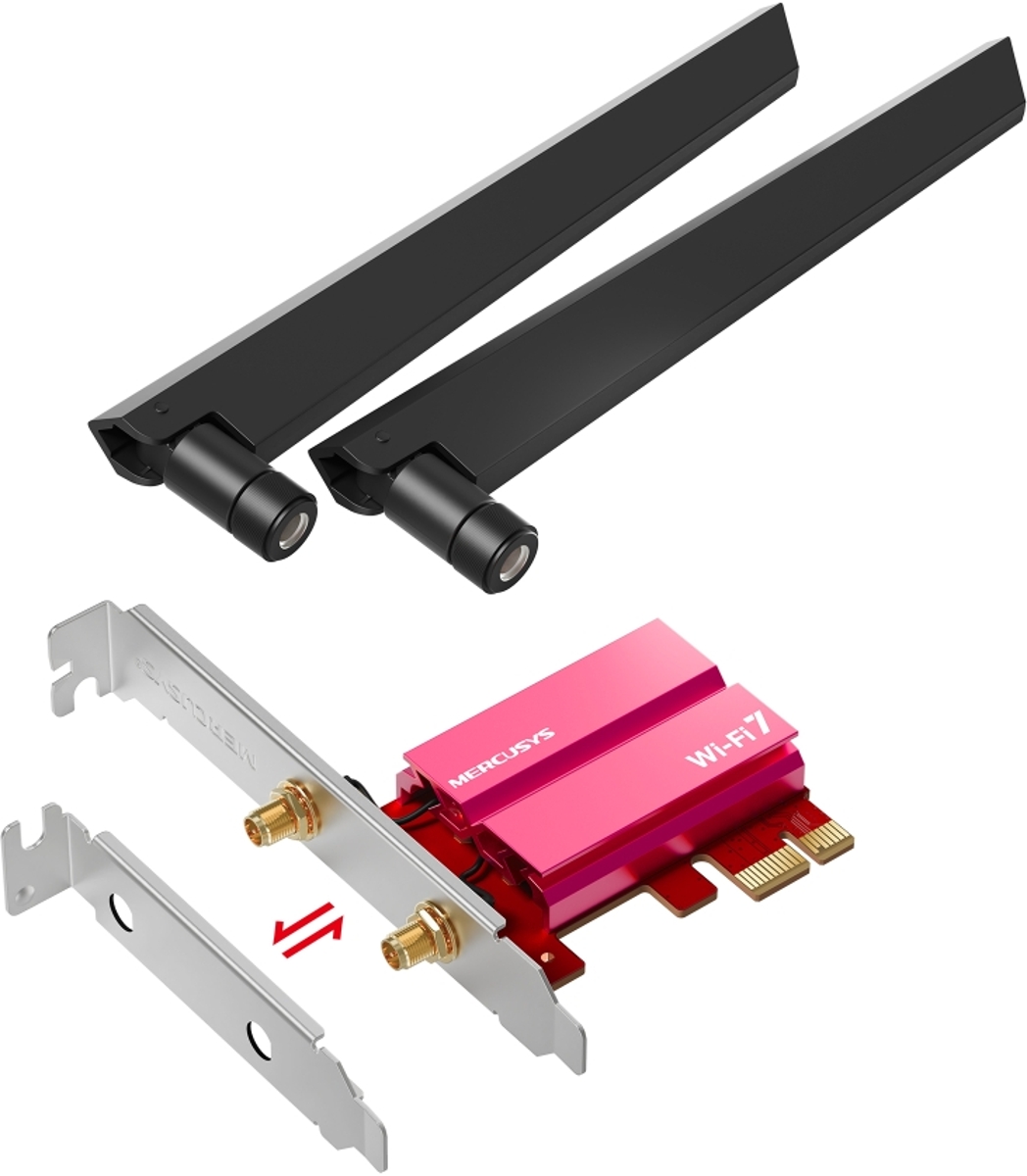

  • Flexible Installation - includes both standard and low-profile brackets for compatibility with various board designs
  • Improved Security - the latest security enhancement, WPA3, provides enhanced protection in personal password safety
  • Supported Operating Systems - compatible with Intel-based Windows 11/10 (64-bit) only. Does not support AMD platforms

Package Contents

  • Device
  • (2) Antennas
  • Resource CD
  • Quick Install Guide
  • Low-Profile Bracket
  • Bluetooth Header Cable

Download

https://www.mercusys.com/en/product/details/ma47be/#specifications
Download Specifications

Technical parameters

LAN ports
Type of network card
WLAN
Interface
PCI Express
Sensitivity [dBm]
-95
Size
Full profile, Low profile
Wireless frequency
2.4 + 5 + 6 GHz (triple band)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax, 802.15.1 (Bluetooth), 802.11be
Transmission speed - 5GHz [Mb/s]
2880
Transmission speed - 2.4GHz [Mb/s]
688
Transmission speed - 6GHz [Mb/s]
5760
Security
WPA-PSK, WPA2-PSK, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
6GHz MIMO
2 x 2
Type of antenna
Detachable
Operating temperature [°C]
0 up to 40
Width [mm]
80
Height [mm]
22
Depth [mm]
121
