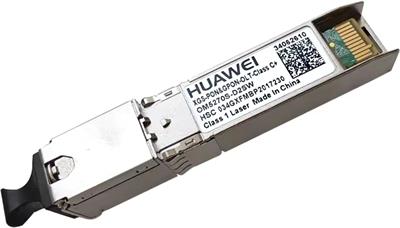

Huawei OSGXGSC+01, XGS-PON/XG-PON/GPON OLT SFP+ optical module, Class C+
Your price incl. VAT (20.0%)
473.92 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 11-02-2026
Product description
The Huawei OSGXGSC+01 XGS-PON/XG-PON/GPON SFP+ module is designed for slots in Huawei OLT units. It is a C+ class module, terminated with an SC connector with UPC polishing and offering a transmission distance of up to 20km. The module has different characteristics when used in XGS-PON, XG-PON and GPON.
| Data rate [Gbps] | Wavelength [nm] | Tx power [dBm] | Rx sensitivity [dBm] | |
|---|---|---|---|---|
| GPON | Tx: 2.488 / Rx: 1.244 | Tx: 1490 / Rx: 1310 | 4.5 to 8.5 | -32 |
| XG-PON | Tx: 9.953 / Rx: 2.488 | Tx: 1577 / Rx: 1270 | 5 to 8 | -30.5 |
| XGS-PON | Tx: 9.953 / Rx: 9.953 | Tx: 1577 / Rx: 1270 | 5 to 8 | -29 |
Download
Technical parameters
LAN ports
For cable type
Single Mode
Transmission speed
1.244 / 2.488 Gbps, 9,95 / 2,44 Gbps, 9,95 / 9,95 Gbps
Operating temperature [°C]
0 up to 70
