RF elements TPA-SMA TwistPort adaptor with 2x RSMA connectors
Your price incl. VAT (20.0%)
18.62 EUR
✅ In Stock 90+ Бр.
Planned Delivery Date by Courier to you 12-11-2025
RF elements Symmetrical Horn Sector antenna with TwistPort, 5GHz, 10dBi, 90°, Gen2 - BazarB-HG3-TP-S90
106.84 EUR excl. VAT
127.46 EUR excl. VAT
114.71 EUR excl. VAT
92.70 EUR excl. VAT
88.16 EUR excl. VAT
88.16 EUR excl. VAT
88.16 EUR excl. VAT
230.58 EUR excl. VAT
250.28 EUR excl. VAT
125.95 EUR excl. VAT
113.36 EUR excl. VAT
Product description

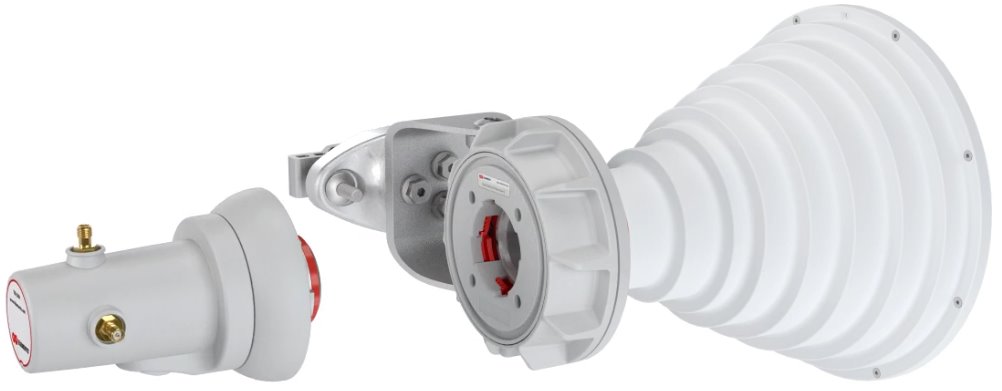

TPA-SMA is a TwistPort converter adapter from TwistPort to (2) RSMA-female connectors. The adapter allows connect any two-polarized radio to be connected by RF cables. The adapter is capable of operating in the 5180 to 6400MHz band.
RSMA female connectors
TPA-SMA provides industry most used RP-SMA male coaxial interface in dual linear H+V polarization.
Minimized Loss

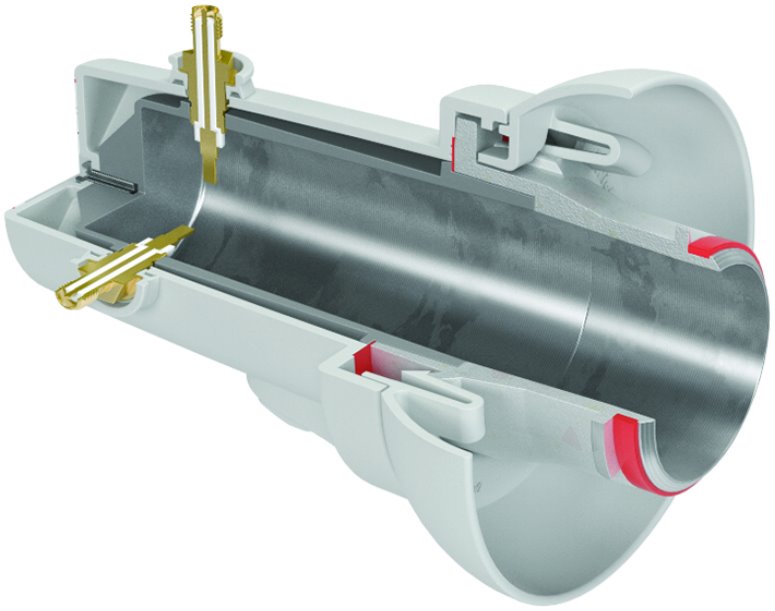

RP-SMA connectors are placed directly on waveguide, avoiding use of inner coaxial cables and minimizing loss to necessary minimum.
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,8
Shielding
Yes
Mounting
On the antenna
Wireless frequency
5 GHz
RF connectors
TwistPort, (2) RSMA female
Purpose
Outdoor
Material
UV stabilized ABS plastic, Aluminum
Operating temperature [°C]
-40 up to 60
Weight [g]
210
Width [mm]
90
Height [mm]
90
Depth [mm]
134
