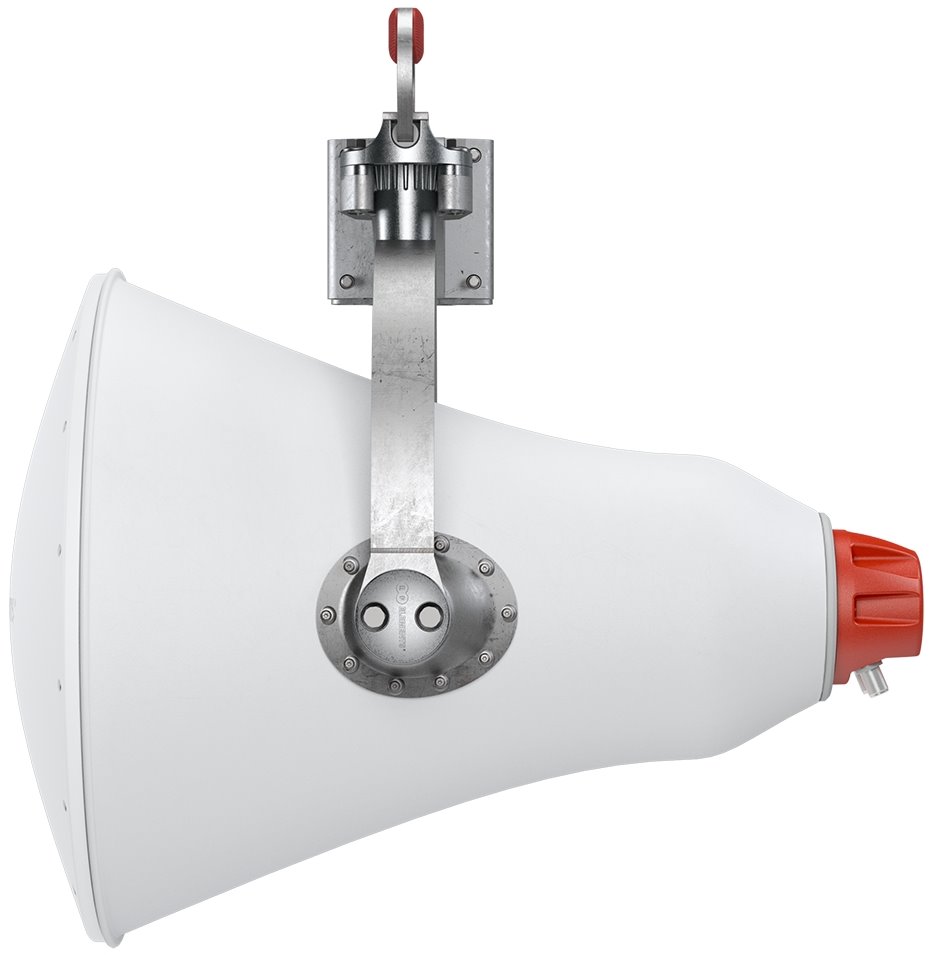

RF elements directional antenna UltraHorn™ CC 5-24, 5GHz, 24dBi
Planned Delivery Date by Courier to you 20-11-2024
Product description
UH-CC-5-24 UltraHorn TP antenna is highly directional (11° beam angle) scalar horn antennas for point-to-point connections in 5GHz band and 24 dBi antenna gain. They offer all the benefits of scalar horns: ultra noise rejection, lossless connection of radio and symmetrical beam with no side lobes. These unique radiation properties make them excellent antennas for long links in environments with a high level of noise.

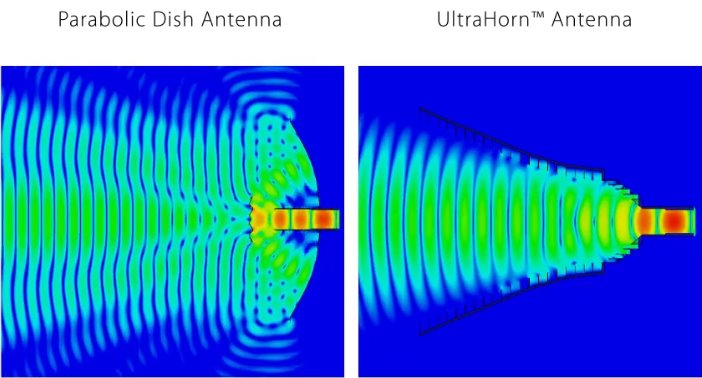

Radiation Patterns

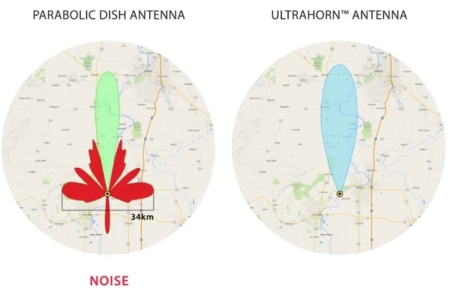

Because horn is naturally directive antenna, it focuses the radiated fields into a single main beam without any side lobes. Commonly used antenna types, such as parabolic dish, always spills some of the energy over the aperture edge causing unwanted side lobes and interference issues.

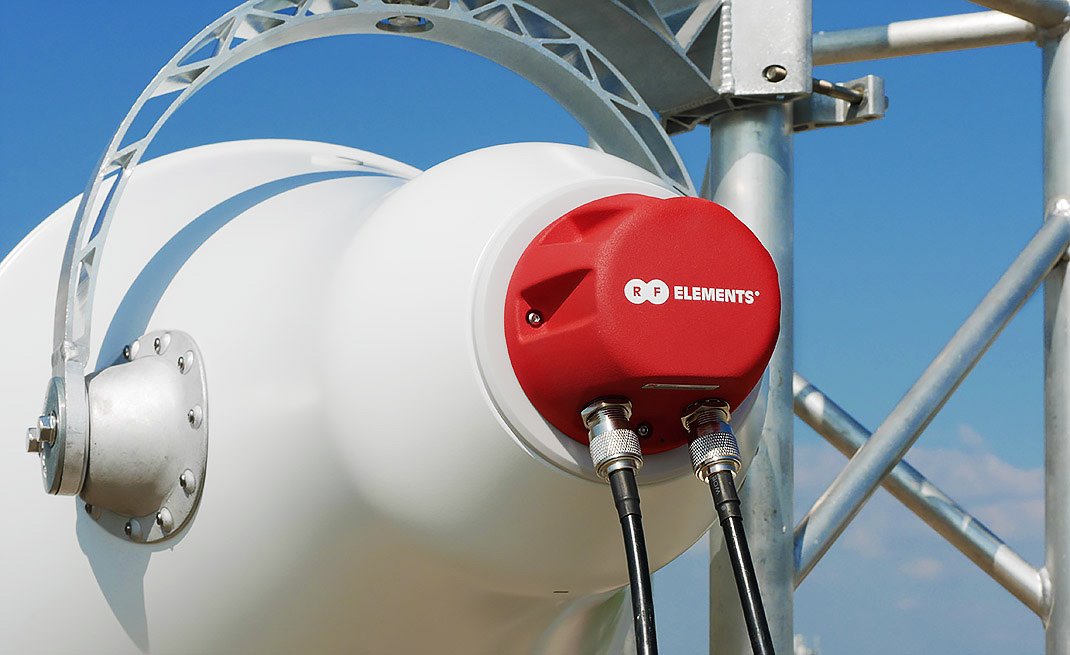

N-type Connectors
UltraHorn Carrier Class features N-type female connectors, enabling connection with wide range of radios, such as Mimosa, Cambium NetworksTM PMP450, LigoWave, and many others.
No Accessories Needed
UltraHorn CC comes as a thorough antenna solution for a high performance wireless link. There is no need to spend extra money on radomes or shrouds. Any additional shielding only burdens the tower and your budget. UltraHorn CC has everything that is needed.
Package contains
- UltraHorn antenna
- Precision holder
