Ubiquiti LiteAP 5AC-17-90 GPS, LAP-GPS, 90°
Your price incl. VAT (20.0%)
97.25 EUR
✅ In Stock 90+ Бр.
Planned Delivery Date by Courier to you 20-11-2024
8.02 EUR excl. VAT
Product description
LiteBeam 5AC-17-90 GPS is Base Station unit with Gigabit LAN port, integrated 17dBi and sector antenna with 90° beam angle. Unit is compatible only with airMAX AC CPE units and is designed for outdoor usage.
Thanks to the possible setting of the channel width 20/40/50/60 and 80MHz , real throughput of up to 450Mbps + can be achieved when using 256QAM ...

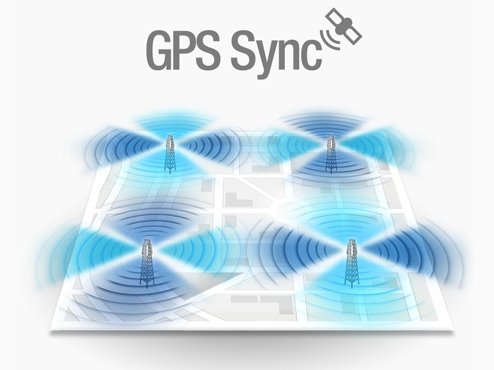

GPS Synchronization

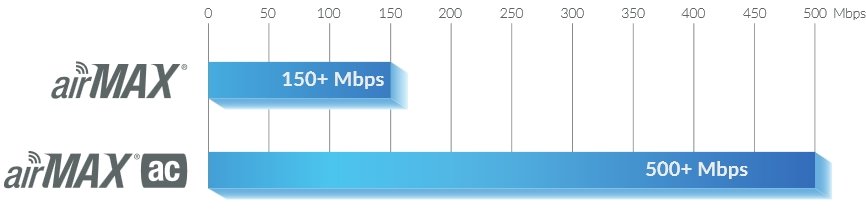

LiteAPTM GPS supports GPS Sync for faster, more scalable, carrier-class networks, with higher throughout than competing solutions. GPS sync with airMAX AC delivers over 90% higher throughput than competing synchronized systems.

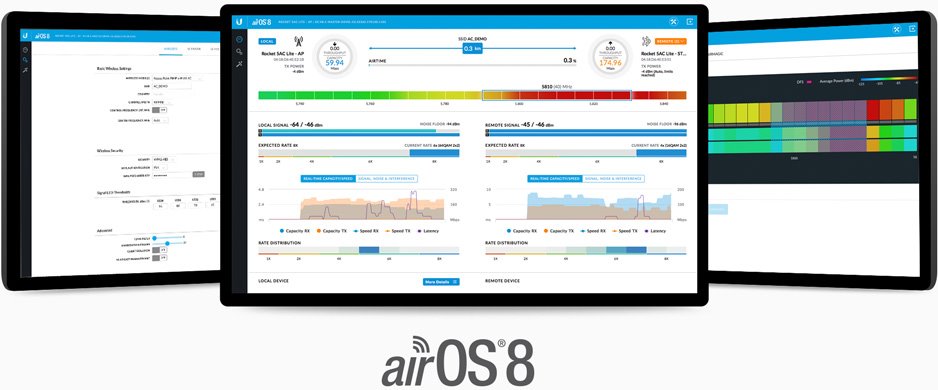

airOS 8
AirOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Package contains
- Device
- Ball Joint Mount
- PoE power adapter 24V / 0.3A
- Power cord
- Metal ring
Download
Technical parameters
LAN ports
Power over Ethernet
24V DC
Operating mode
AP Router, Access Point, Client, Client Router (wisp)
Wireless frequency
5 GHz
WiFi standards
airMAX ac
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
25
Security
WPA2 AES
Elevation beam width (-6dB) [°]
15
Azimuth beam width (-6dB) [°]
90
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
17
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
7,1
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
752
Width [mm]
125
Height [mm]
361
Depth [mm]
71
CPU
MIPS 74Kc
IPv6 support
Transparent (bridge mode)
Default IP address
192.168.1.20
Default login and password
ubnt / ubnt
GPS modul
Yes
Other features
WiFi management radio
