MikroTik RouterBOARD RBwAPGR-5HacD2HnD, wAP R ac, ROS L4

MikroTik RouterBOARD RBwAPGR-5HacD2HnD, wAP R ac, ROS L4
Your price incl. VAT (20.0%)
118.63 EUR
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 28-05-2025
MikroTik
Manufacturer
Product number
RBwAPGR-5HacD2HnD
Product Code
RL006.699
Warranty
24 months

Product description

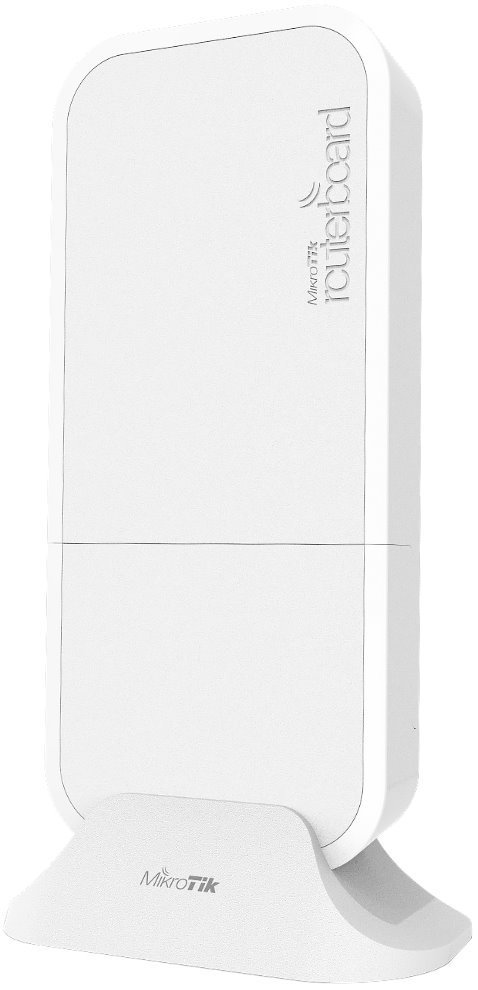

A small package with a huge ambition – the wAP ac R is an extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on our popular weatherproof wAP form factor. Enjoy wireless experience anywhere – indoors or outdoors! wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30°C to +60°C and can be easily mounted on walls, ceilings or poles.

High performance

Don’t be fooled by the compact size – this device is powered by a four core 716 MHz CPU and 128 MB RAM, capable of handling heavy loads. Dual-chain 2.4 GHz and dual-chain 5GHz wireless for dual concurrent AP coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.

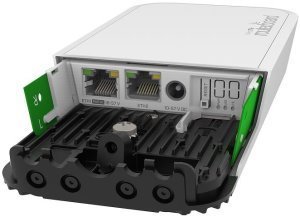

It has two Gigabit Ethernet ports and miniPCIe slot for LTE modem of your choice (not included).

High performance, great value, astonishing durability, functional and non-intrusive design – wAP ac LTE will meet most demands without making sacrifices.

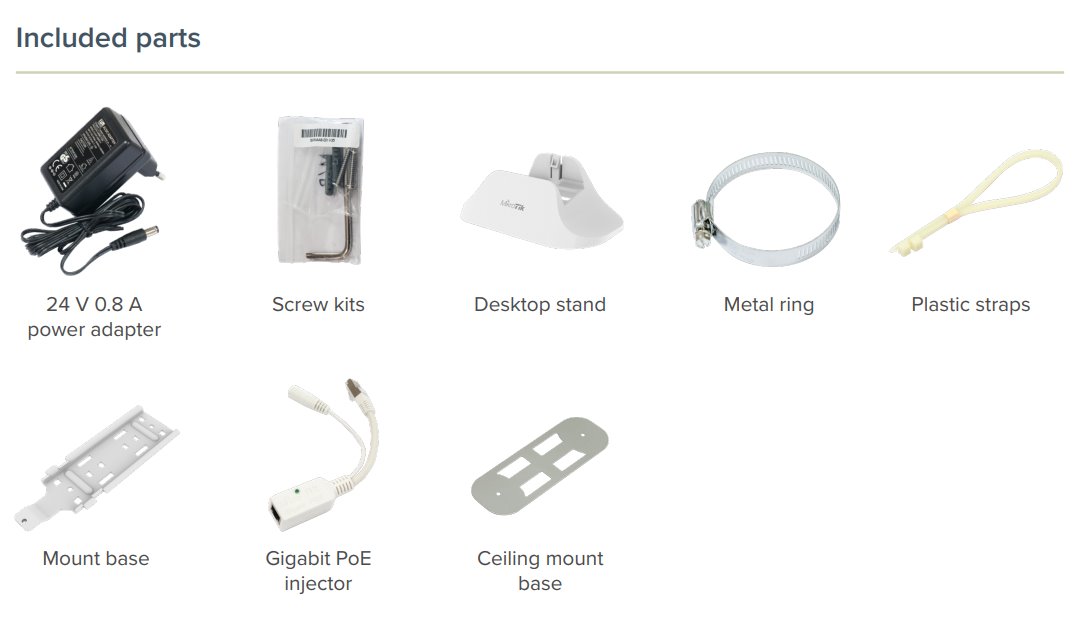

Package contains

  • Device
  • Power adapter 24V/0.8A
  • Desktop stand
  • Metal ring
  • Plastics straps
  • Mount base
  • Gigabit PoE injector
  • Ceiling mount base
  • Screw kits

Download

http://www.mikrotik.com/download
Download Firmware (RouterOS / SwOS)
https://download.discomp.cz/MikroTik/CE/RBwAPGR-5HacD2HnD.pdf
Download CE
https://download.discomp.cz/MikroTik/Datasheets/wAP_ac_LTE_200722.pdf
Download Datasheet
https://help.mikrotik.com/docs/display/QG
Download Quick Guide
https://wiki.mikrotik.com/wiki/Manual:TOC
Download RouterOS SW manual

Technical parameters

LAN ports
Power over Ethernet
18 .. 57V DC, 802.3af, 802.3at
Design
Desktop, On the wall, Ceiling, Outdoor
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11ac, 802.11b/g, 802.11n
Transmission speed - 5GHz [Mb/s]
866
Transmission speed - 2.4GHz [Mb/s]
300
Tx power 2.4GHz [dBm]
22
Tx power 5GHz [dBm]
24
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
4
Antenna gain [dBi]
2,5, 4
Operating system
RouterOS - L4
LAN ports
2
LAN speed
(2) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
11
Power via connector/terminal
10 .. 57V DC
Buttons
Reset
Operating temperature [°C]
-30 up to 60
Width [mm]
85
Height [mm]
185
Depth [mm]
30
CPU
IPQ-4018
CPU frequency [MHz]
716
CPU cores
4
MiniPCI-e slots
1
SIM slot
Yes
SIM slots quantity
1
IPv6 support
Yes
Default IP address
192.168.88.1
Internal storage [MB]
16
RAM [MB]
128
Default login and password
admin / -
