TP-Link EAP660 HD Access Point v1

TP-Link EAP660 HD Access Point v1
Your price incl. VAT (20.0%)
255.74 EUR
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 20-11-2024
TP-Link
Manufacturer
Product number
EAP660 HD
Product Code
RL008.230
Warranty
60 months

Product description

The EAP660 HD is currently best of EAP Access Point with Roaming, which supports the latest wireless protocol 802.11ax with MU-MIMO technology and easily reaches speeds of up to 2402 + 1148 Mbps in a dual-band Wi-Fi network for multiple devices at once, thanks to 4x4 MIMO on both radio parts. At the same time, a Gigabit LAN port would no longer be enough, so the AP was equipped with a LAN port with a speed of up to 2.5Gbps. For great coverage, the AP has 8 built-in antennas, 4 of which operate 2.4GHz radio the antennas take care of 5GHz and have a gain of 6dBi. Thanks to these improvements, the access point also has a higher consumption of 19W and can be powered either directly via a 12V DC power adapter or via 802.3at PoE. Great news is encrypting wireless traffic with WPA3.

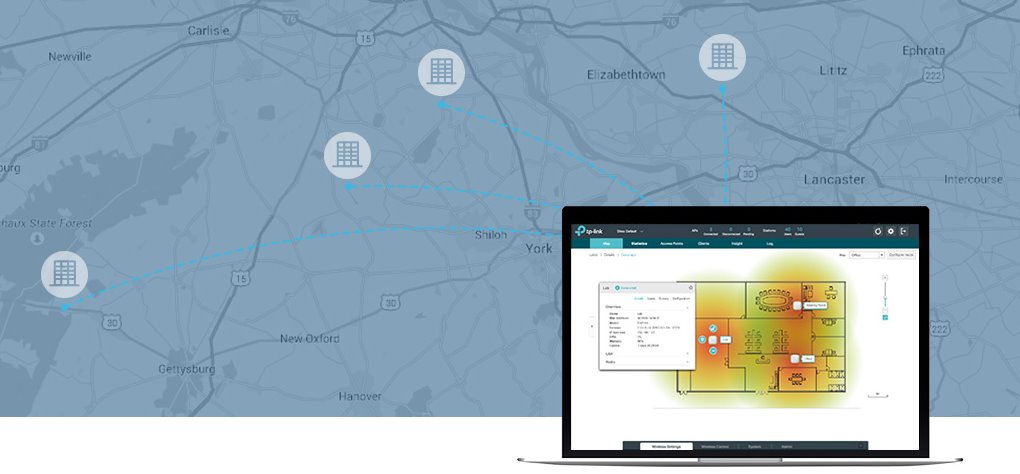

Easy for Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

TP-Link EAP660 HD

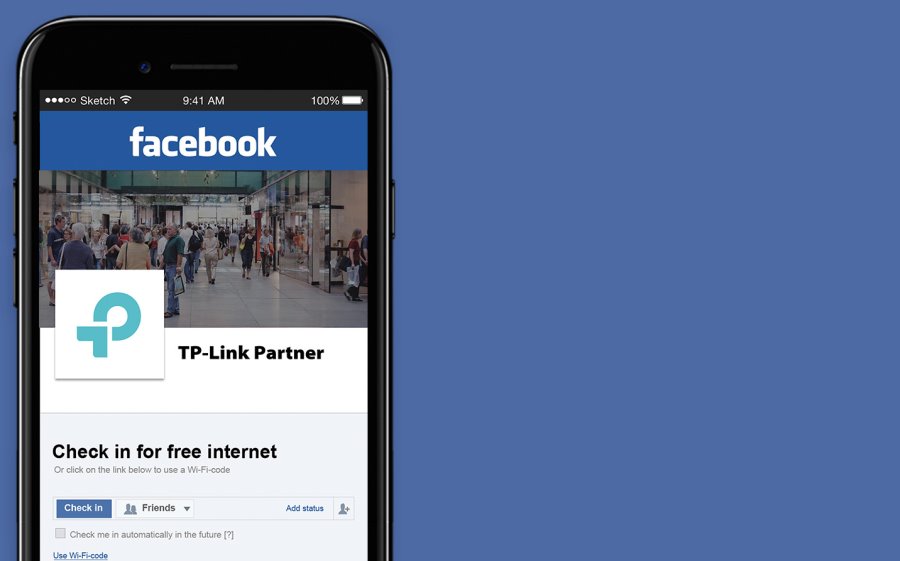

Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

TP-Link EAP660 HD

Package contains

  • Unit EAP660 HD
  • Power adapter 12V/2A
  • Ceiling kit

Download

https://download.discomp.cz/tp-link/datasheets/EAP_Datasheet.pdf
Download Datasheet

Technical parameters

LAN ports
Power over Ethernet
802.3at
Operating mode
Access Point
Management
Omada controller
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11a, 802.11b/g, 802.11n, 802.11ac, 802.11ax
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
2402
Transmission speed - 2.4GHz [Mb/s]
1148
Tx power 2.4GHz [dBm]
26
Tx power 5GHz [dBm]
26
Security
WEP, WPA, WPA2, WPA3
2.4GHz MIMO
4 x 4
5GHz MIMO
4 x 4
Type of antenna
Built-in
Internal antennas
8
Purpose
Indoor
Roaming
Yes
Antenna gain [dBi]
5, 6
LAN ports
1
LAN speed
(1) 100/1000/2500Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
19
Power via connector/terminal
12V / 2A
Buttons
Reset
Operating temperature [°C]
0 up to 40
Width [mm]
243
Height [mm]
64
Depth [mm]
243
Default IP address
Dynamic from DHCP
Default login and password
admin / admin
