Ubiquiti UniFi Switch USW-16-POE Gen2

Ubiquiti UniFi Switch USW-16-POE Gen2
Your price incl. VAT (20.0%)
313.79 EUR
Ordered for stock
Delivery Planned Delivery Date by Courier to you 27-11-2024
Ubiquiti Networks
Manufacturer
Product number
USW-16-POE
Product Code
RL008.939
Warranty
24 months

Product description

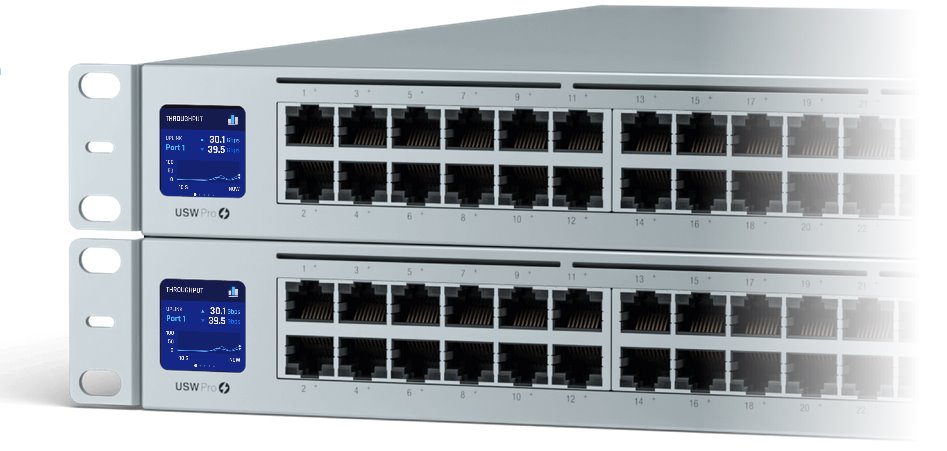

USW-16-POE is a configurable Gigabit Layer 2 switch with 16 Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and 2 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.

UBNT USW-16-POE

Management via UniFi controller

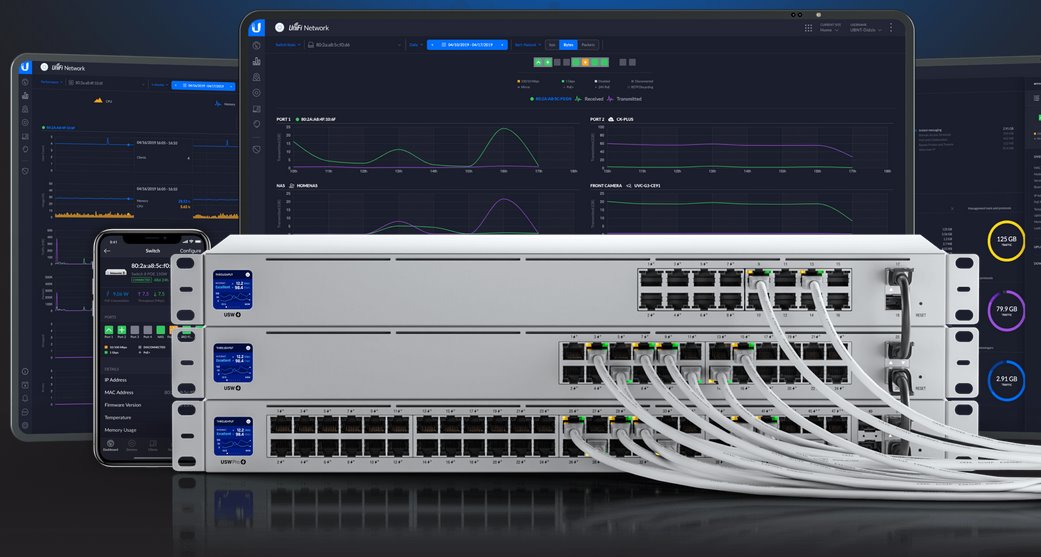

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

UBNT USW-16-POE

Package contains

  • Device
  • Power cord
  • Rackmount ears

Download

https://www.ui.com/download/unifi-switching-routing/unifi-switch-16-poe#
Download Firmware
https://www.ui.com/downloads/ds/usw_poe_ds
Download Datasheet
https://www.ui.com/downloads/qsg/USW-16-POE/
Download Quick Guide

Technical parameters

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
36
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
26,78
Management
UniFi Network
Features
VLAN, DHCP snooping
Power type
Mains power (230V)
Fans
No
LAN ports
16
LAN speed
(16) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
2
Optical interfaces
(2) 1000Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
PoE budget [W]
42
Max. power consumption [W]
18
Chassis design
Metal
Power via connector/terminal
230V AC
Operating temperature [°C]
-5 up to 40
Width [mm]
442
Height [mm]
44
Depth [mm]
200
Default IP address
Dynamic from DHCP, 192.168.1.20
Default login and password
ubnt / ubnt
Other features
Touchscreen
