RF elements StarterDish STD-24-UM Directional Parabolic Dish Antenna, 5GHz, 24dBi
Your price incl. VAT (20.0%)
46.82 EUR
✅ In Stock 90+ Бр.
Planned Delivery Date by Courier to you 05-03-2025
8.05 EUR excl. VAT
247.26 EUR excl. VAT
89.76 EUR excl. VAT
Product description

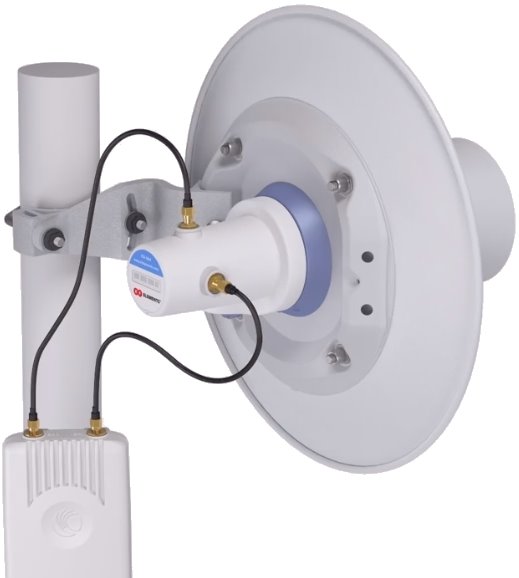

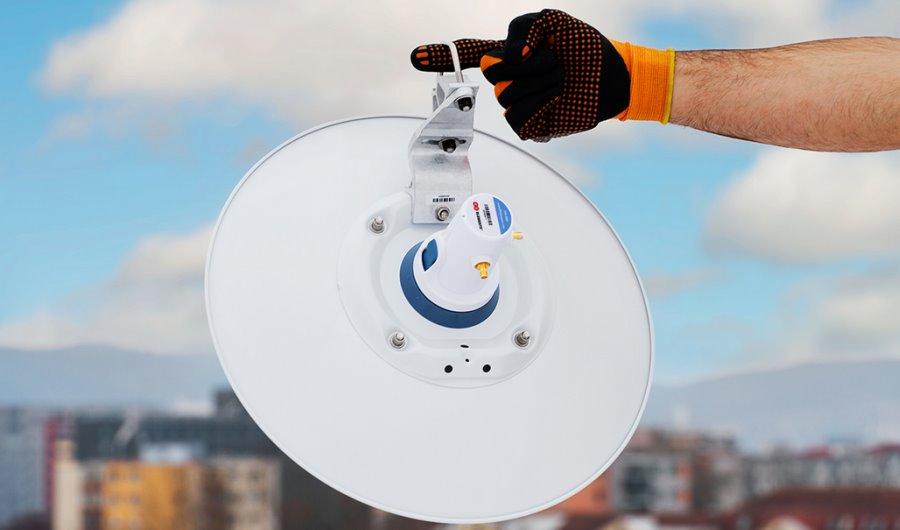

The StarterDish antenna from RF Elements is a directional parabolic antenna with a gain of 24 dBi primarily intended for client installations. The antenna consists of a very light parabolic antenna, a simple holder for a mast with a diameter from 20 to 55 mm, a radiator is made of aluminum terminated on the back with a so-called IsoStation connector for direct connection to IsoStation or PrismStation units from Ubiquiti. The antenna package also includes a reducer for connection to a C5x unit from Mimosa.
Compatibility
For greater compatibility, use the optional STA-SMA reducer with two RSMA female connectors for connecting units with HF connectors.
- Ubiquiti PrismStation, IsoStation - without any converter
- Mimosa C5x - converter is part of the StarterDish package
Package Contents
- Antenna
- Holder
- Converter on Mimosa C5x
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
Designed for mast diameter [mm]
20 up to 55
Wind load [km/h]
160
Protection class
IP65
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
12
Azimuth beam width (-6dB) [°]
12
Antenna type
Directional
RF connectors
IsoStation port, Twist-on port (Mimosa)
Purpose
Outdoor
Antenna gain [dBi]
24
Operating temperature [°C]
-35 up to 55
Weight [kg]
1,5
Width [mm]
391
Height [mm]
391
Depth [mm]
196
