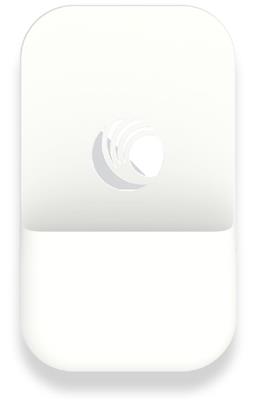

Cambium Networks cnWave V1000 Client, 60GHz - Bazar

Cambium Networks cnWave V1000 Client, 60GHz - Bazar
folosit
Your price incl. VAT (20.0%)
353.51 EUR
✅ În stoc < 10 Бр.
Delivery Data de livrare planificată prin curier către dvs 03-12-2025
Cambium Networks
Manufacturer
Product number
B-C600500C003A
Product Code
RL024.363
Warranty
24 months

Product description

Produsul este complet funcțional și folosit la expoziție. Este posibil să nu conțină accesorii complete sau ambalaj original.
This is an automatic translation. You can see the original text here

Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.

Details

V1000 is a 60GHz client unit with a directional antenna with a beam angle of 40° (20° in the vertical direction) and a gain of 22.5dBi for easy installation. The unit can be powered via Gigabit Ethernet using 802.3af PoE. The wireless part supports two bandwidths 2160MHz and 4320MHz (future fw), the real wireless link speed is 2 Gbps (1 Gbps downlink, 1 Gbps uplink) and supports PtMP, Mesh or PTP (future fw) wireless modes. The maximum power consumption of the device is only 10W.

Package contains

  • Device
  • Holder
  • (2) plastic tie
  • PoE power adapter
  • Power cord (EU connector)

Download

https://download.discomp.cz/cambium/datasheet/CN_data_sheet_60GHz_cnWave_V1000.pdf
Download Datasheet
https://download.discomp.cz/cambium/QG/60-GHz-cnWave-Quick-Start-Guide.pdf
Download Quick Guide

Technical parameters

LAN ports
Power over Ethernet
802.3af
Protection class
IP67
Channel bandwidth [MHz]
2160, 4320
Transmission speed - 60GHz [Mb/s]
1000, Full Duplex
Output power 60GHz [dBm]
38 (EIRP)
Security
128bit AES
Elevation beam width (-6dB) [°]
20
Azimuth beam width (-6dB) [°]
40
Type of antenna
Built-in
Antenna gain [dBi]
22,5
Power type
PoE
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Max. power consumption [W]
10
Operating temperature [°C]
-40 up to 60
Weight [g]
250
Width [mm]
85
Height [mm]
140
Depth [mm]
40
Default IP address
169.254.1.1
Default login and password
admin / admin
