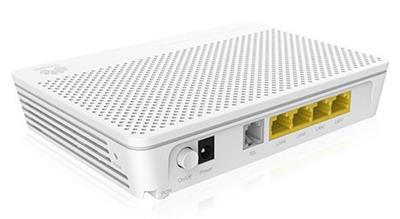

Huawei OptiXstar EG8140H5, GPON ONT router

Huawei OptiXstar EG8140H5, GPON ONT router
Your price incl. VAT (20.0%)
30.22 EUR
Comandat pentru disponibilitate
Delivery Nicio dată de livrare confirmată
Manufacturer
Product number
EG8140H5
Product Code
RL030.103
Warranty
24 months

Download

https://download.discomp.cz/Huawei/Datasheets/EG8140H5.pdf
Download Datasheet
https://download.discomp.cz/Huawei/Manuals/EG8140H5_Quick Start.pdf
Download Quick Start Guide

Technical parameters

LAN ports
Optical Connectors
(1) SC
Transmission speed
2.488 / 1.244 Gbps
Wavelength - Tx/Rx [nm]
1310 / 1490
Transfer type
GPON
Polishing type
APC
LAN ports
4
LAN speed
(4) 10/100/1000Mbps
Max. LAN ports speed
1G
PON SFP cages
1
Receiver sensitivity [dBm]
-27
Max. power consumption [W]
7
Power via connector/terminal
12V DC
Buttons
Reset
Operating temperature [°C]
0 up to 40
Width [mm]
168
Height [mm]
30
Depth [mm]
115
Default IP address
192.168.18.1
Default login and password
Epadmin / adminEp
