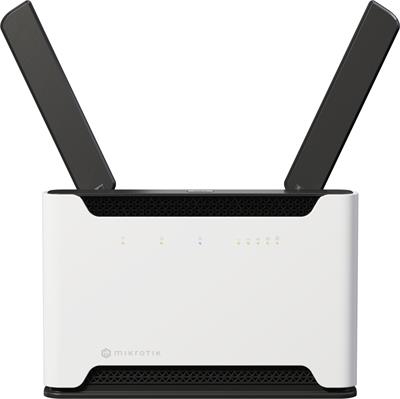

MikroTik S53UG+5HaxD2HaxD-TC&R11e-LTE7, Chateau LTE7 ax

Sensitivity [dBm]

-100

Design

Desktop

Operating mode

Cellular router, AP Router

Wireless frequency

2.4 + 5 GHz (dual band), LTE, 3G (GSM)

WiFi standards

802.11a, 802.11ac, 802.11ax, 802.11b/g, 802.11n

Transmission speed - 5GHz [Mb/s]

1201

Transmission speed - 2.4GHz [Mb/s]

574

Tx power 2.4GHz [dBm]

24

Tx power 5GHz [dBm]

24

2.4GHz MIMO

2 x 2

5GHz MIMO

2 x 2

Type of antenna

Built-in, Detachable

Internal antennas

4

Detachable antennas

2

Purpose

Indoor

Roaming

Yes

Antenna gain [dBi]

3, 6

Integrated 4G/LTE radio part

Yes

Power type

DC connector

4G/LTE bands support

(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (32) 1500 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz

Operating system

RouterOS v7 - L4

LAN ports

5

LAN speed

(1) 1G/2.5Gbps + (4) 10/100/1000Mbps

Gigabit LAN

Yes

Max. power consumption [W]

22

USB ports 2.0

1

Power via connector/terminal

12 .. 28V DC

Buttons

Reset, mode

Operating temperature [°C]

-40 up to 70

Width [mm]

240

Height [mm]

156

Depth [mm]

44

CPU

IPQ-6010

CPU frequency [MHz]

1800

CPU cores

4

SIM slot

Yes

SIM slots quantity

1

USB

Yes

IPv6 support

Yes

Default IP address

192.168.88.1

Internal storage [MB]

128

RAM [MB]

1024

Default login and password

admin / (preset password, see label/engraving)
