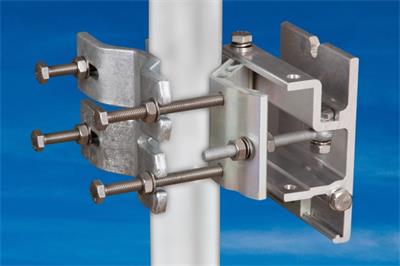

JIROUS JDMW-910 - Precision Antenna Mount

JIROUS JDMW-910 - Precision Antenna Mount
Вашата цена с ДДС (20.0%)
94.25 EUR
❌ Артикулът не е наличен. Няма възможност за поръчка.
Delivery Без потвърдена дата на доставка
Jirous
Производител
Jirous
Продуктов номер
JDMW-910
Продуктов Код
RL028.390
Гаранция
23 месеца

Имате въпрос?

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

The JDMW-910 antenna mount is designed for microwave antennas operating at very high frequencies (60 GHz, 80 GHz, and above).

Features:
  • The JDMW-910 mount is designed for antennas requiring easy handling and high stability
  • High corrosion resistance
  • Very fine adjustment of elevation and azimuth
  • Excellent stability when tightening the aligned antenna
  • Supports both right and left mounting
  • All bolts can be tightened with a single size 17 wrench
  • Easy installation
  • All aluminum threads are reinforced with stainless steel inserts
  • Threads are treated with a special compound to prevent “seizing” of stainless-to-stainless connections


    • Technical Specifications:
  • Antenna diameter: max. 1000 mm
  • Pole mount: diameter 40 – 120 mm
  • Fine azimuth adjustment: ±16°
  • Fine elevation adjustment: ±19°
  • Weight: 3.3 kg


    • Easy Installation:
  • All components stay together during installation — nothing can fall off (not even a screw or nut)
  • You can first mount the holder separately without the heavy antenna and roughly align it
  • Hang the antenna on the holder using the mounting screw (the washer is secured at the screw head)
  • Then simply tighten one screw (it is a non-removable part of the mount)


    • Технически параметри

    LAN ports
    Designed for mast diameter [mm]
    40 up to 120
    Mounting
    On the mast
    Weight [g]
    3300
