Product description

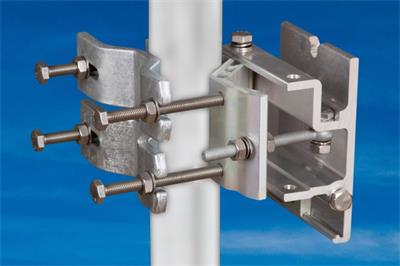

The JDMW-910 antenna mount is designed for microwave antennas operating at very high frequencies (60 GHz, 80 GHz, and above).
Features:
The JDMW-910 mount is designed for antennas requiring easy handling and high stability
High corrosion resistance Very fine adjustment of elevation and azimuth
Excellent stability when tightening the aligned antenna
Supports both right and left mounting
All bolts can be tightened with a single size 17 wrench
Easy installation
All aluminum threads are reinforced with stainless steel inserts
Threads are treated with a special compound to prevent “seizing” of stainless-to-stainless connections
Technical Specifications:
Antenna diameter: max. 1000 mm
Pole mount: diameter 40 – 120 mm
Fine azimuth adjustment: ±16°
Fine elevation adjustment: ±19°
Weight: 3.3 kg
Easy Installation:
All components stay together during installation — nothing can fall off (not even a screw or nut)
You can first mount the holder separately without the heavy antenna and roughly align it
Hang the antenna on the holder using the mounting screw (the washer is secured at the screw head)
Then simply tighten one screw (it is a non-removable part of the mount)
