Ubiquiti airFiber Dish 34dBi, 5GHz, Slant 45
Your price incl. VAT (20.0%)
311.20 EUR
Ordered for stock
Planned Delivery Date by Courier to you 27-11-2024
You have a choice of 3 variants
Product description
The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings. AF-5G34-S45 offers 30dBi of gain in a 1050-mm diameter size.The airFiber X supports ± 45° slant polarization for improved noise immunity and Signal-to-Noise Ratio (SNR). The airFiber X antennas are purpose-built with 45° slant polarity for seamless integration with the airFiber X.

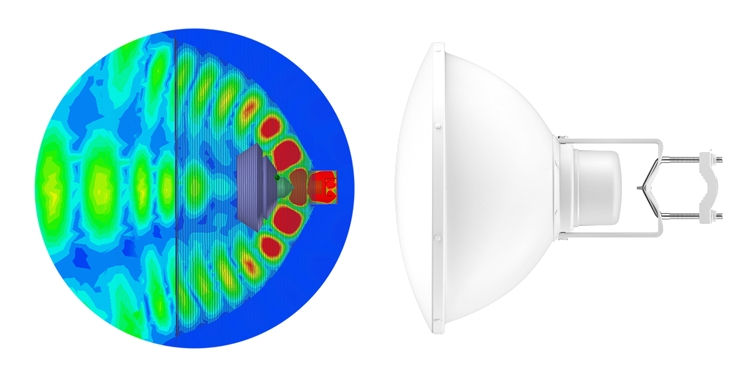

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.
Package contains
- Antenna

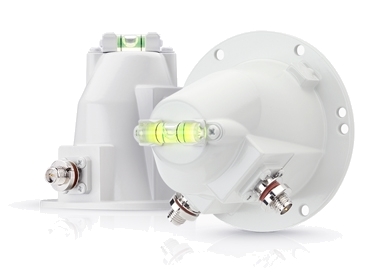

- Antenna feed
- Protective shroud
- (2) RSMA male - RSMA male pigtail
- Mount bracket + screws
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2 (slant - 45° turned)
Polarization
VH (slant)
Antenna design
Parabolic
VSWR
< 1,4
F/B ratio [dB]
42
Cross-Pol Isolation [dB]
35
Wind load [km/h]
200
Rocket kit
Yes
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
3
Azimuth beam width (-6dB) [°]
3
Antenna type
Directional
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
34
Weight [kg]
13,5
Width [mm]
1050
Height [mm]
1050
Depth [mm]
421
