Ubiquiti airFiber Dish 30dBi, 5GHz, Slant 45 (2pcs in package)
Your price incl. VAT (20.0%)
230.80 EUR
✅ In Stock 50+ Бр.
Planned Delivery Date by Courier to you 20-11-2024
You have a choice of 3 variants

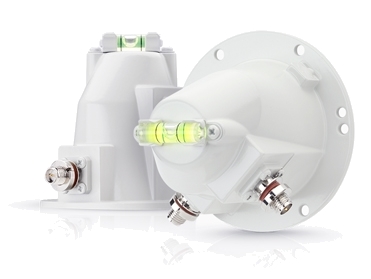

Ubiquiti PAK-620 Precision Alignment Kit, for RD-5G30-LW, AF-5G30-S45, PBE-5AC-620, PBE-M5-620PAK-620
27.73 EUR excl. VAT
Product description

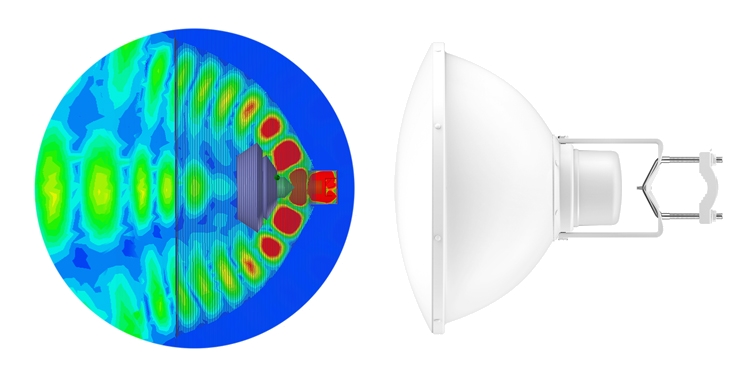

The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings. AF-5G30-S45 offers 30dBi of gain in a 650-mm diameter size.The airFiber X supports ± 45° slant polarization for improved noise immunity and Signal-to-Noise Ratio (SNR). The airFiber X antennas are purpose-built with 45° slant polarity for seamless integration with the airFiber X.
The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.
Package contains
- (2) Antenna
- (2) Antenna feed
- (2) Protective shroud
- (4) RSMA male - RSMA male pigtail
- (2) Mount bracket + screws
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2 (slant - 45° turned)
Polarization
VH (slant)
Antenna design
Parabolic
VSWR
< 1,6
F/B ratio [dB]
30
Cross-Pol Isolation [dB]
35
Wind load [km/h]
200
Rocket kit
Yes
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
6
Azimuth beam width (-6dB) [°]
6
Antenna type
Directional
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
30
Weight [kg]
7,4
Width [mm]
650
Height [mm]
650
Depth [mm]
386
