RF elements Symmetrical Horn Sector antenna with TwistPort, 5/6GHz, 13 dBi, 60°

RF elements Symmetrical Horn Sector antenna with TwistPort, 5/6GHz, 13 dBi, 60°
Your price incl. VAT (20.0%)
233.48 EUR
Ordered for stock
Delivery No confirmed delivery date
RF elements
Manufacturer
Product number
SH60WB
Product Code
RL027.869
Warranty
24 months

Product description

60° Symmetrical Horn Antennas have a symmetrical beam pattern with depressed sidelobes. They offer excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense co-location deployments.

SH60WB

Key features

  • Wideband performance covering 5 & 6 GHz unlicensed spectrum bands
  • Industry-changing TwistPort™ waveguide connector. Connect directly to waveguide ported radios or use TP Adaptor to common coaxial connectors.

New industrial design

  • Built of high grade aluminum for extreme outdoor resistance including harsh salt water environments
  • Extremely lightweigth for low tower load
  • Compact for low wind loading
  • UBR mounting bracket with stainless steel hardware with anti-seize coating
  • Industry leading ergonomics with integrated handle for easy deployment

Download

https://download.discomp.cz/RFelements/Datasheets/SH60WB_Datasheet.pdf
Download Datasheet
https://download.discomp.cz/RFelements/QSG/UG-SH30,60,90WB.pdf
Download User Guide

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
F/B ratio [dB]
28
Designed for mast diameter [mm]
40 up to 80
Wind load [km/h]
160
Protection class
IP65
Wireless frequency
5 GHz, 6 GHz
Elevation beam width (-6dB) [°]
60
Azimuth beam width (-6dB) [°]
60
Antenna type
Sector
Purpose
Outdoor
Antenna gain [dBi]
13
Material
Aluminum, UV stabilized ABS plastic, Stainless steel
Operating temperature [°C]
-35 up to 60
Weight [kg]
1,7

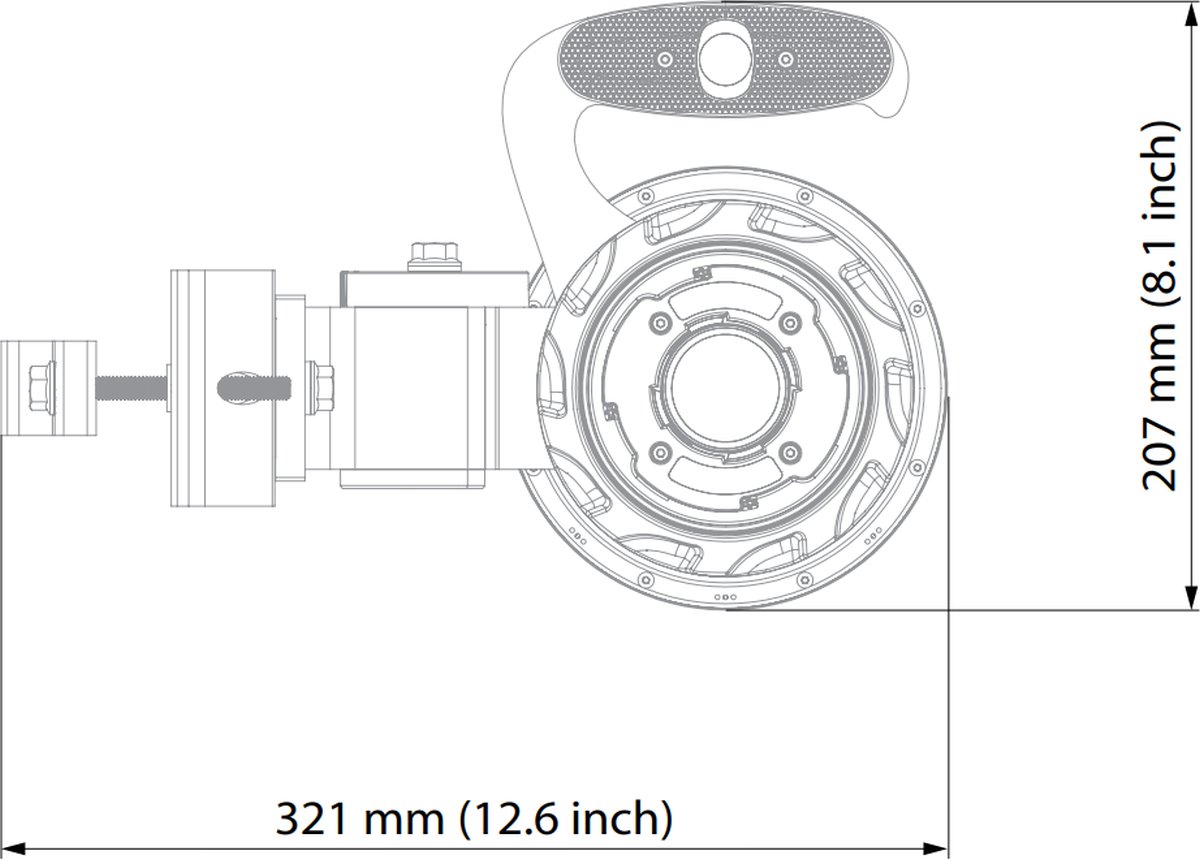

Width [mm]
321
Height [mm]
207
Depth [mm]
150
