RF elements TPA-SMA TwistPort adaptor for 6Ghz with 2x RP-SMA connectors
Your price incl. VAT (20.0%)
24.11 EUR
❌ The item is not available. There is no option to order.
No confirmed delivery date
194.57 EUR excl. VAT
194.57 EUR excl. VAT
194.57 EUR excl. VAT
RF elements UltraDish UD29WB Directional Parabolic Dish Antenna with TwistPort, 5/6GHz, 29 dBi UD29WB
175.75 EUR excl. VAT
229.82 EUR excl. VAT
103.94 EUR excl. VAT
112.98 EUR excl. VAT
125.54 EUR excl. VAT
264.48 EUR excl. VAT
Product description
The TPA-SMA6 provides two RP-SMA female coaxial interface to TwistPort™ enabled antennas.
Compatible devices
- any WB antenna: SH30WB, SH60WB, SH90WB,AH60WB, AH90WB, UD29WB
- 5 GHz Antennas: UH-TP-5-24, HG3-TP-S30, UD-TP-21, UD-TP-24, UD-TP-27
Download
Technical parameters
LAN ports
Protection class
IP65
Mounting
On the antenna
Impedance [ohms]
50
Wireless frequency
6 GHz
RF connectors
(2) RP-SMA female
Purpose
Outdoor
Material
Aluminum
Operating temperature [°C]
-40 up to 60
Weight [g]
130

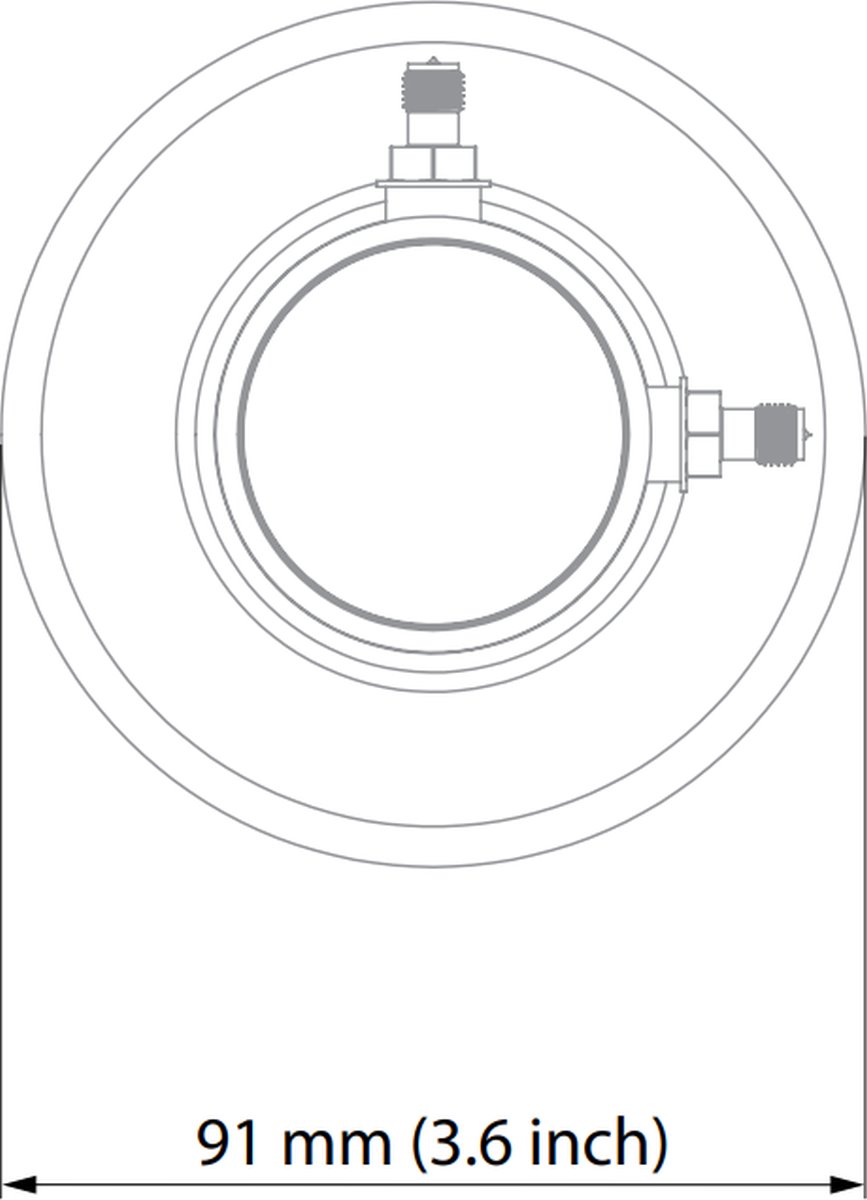

Width [mm]
91
Height [mm]
91

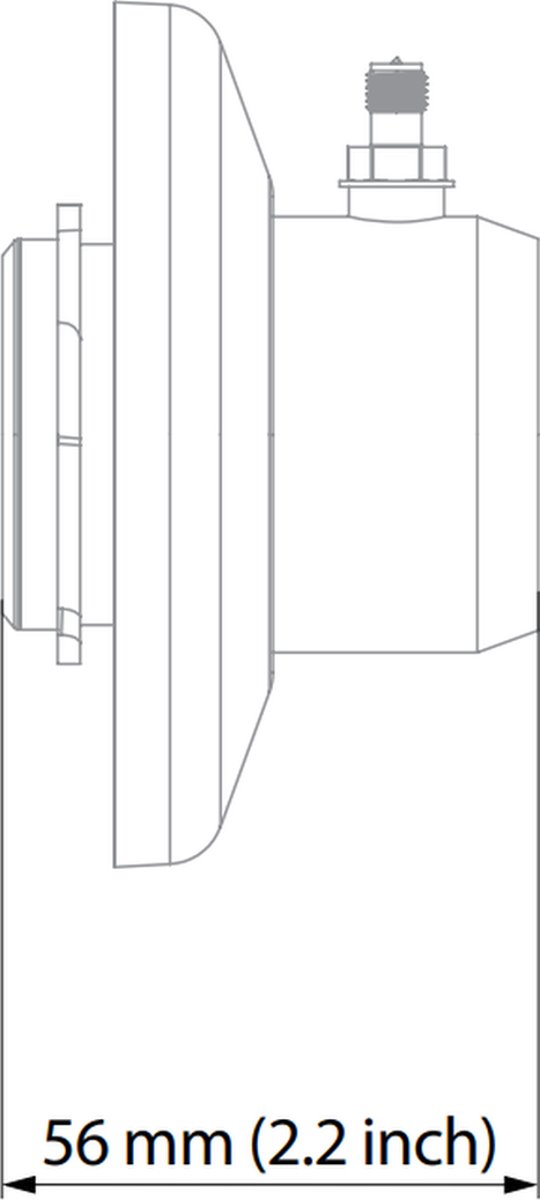

Depth [mm]
56
