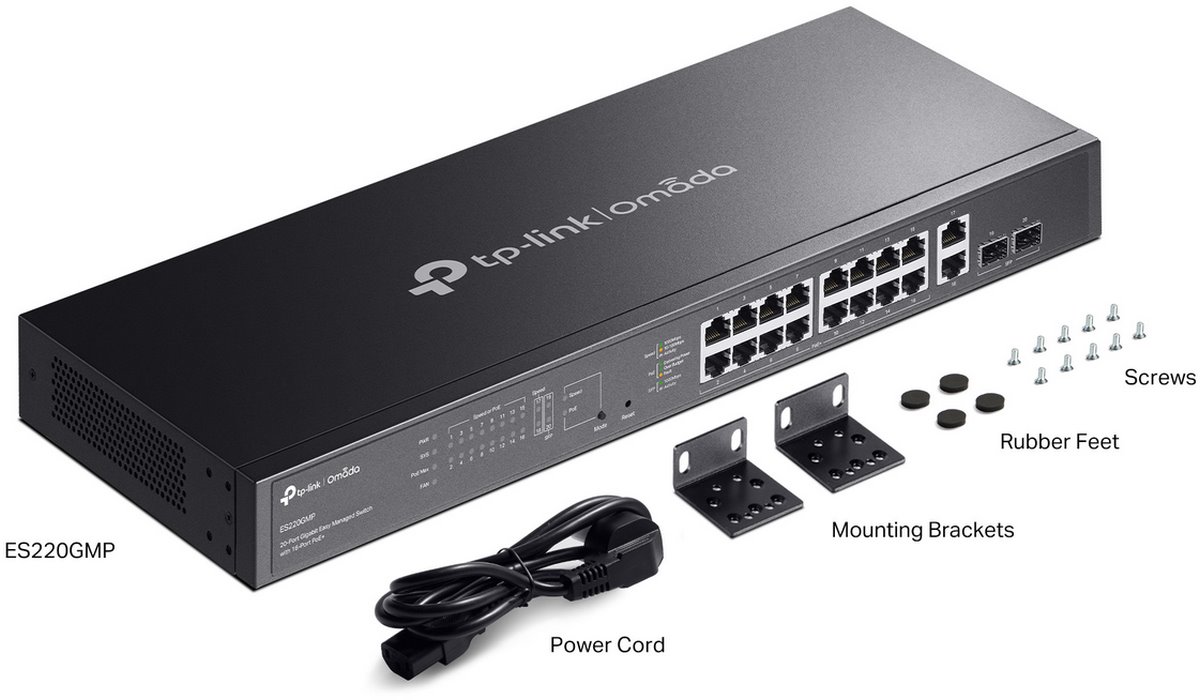

TP-Link ES220GMP - Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
New
Your price incl. VAT (20.0%)
202.18 EUR
Ordered for stock
Planned Delivery Date by Courier to you 02-04-2025
97.58 EUR excl. VAT
810.04 EUR excl. VAT
1932.52 EUR excl. VAT
Product description
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
Key features

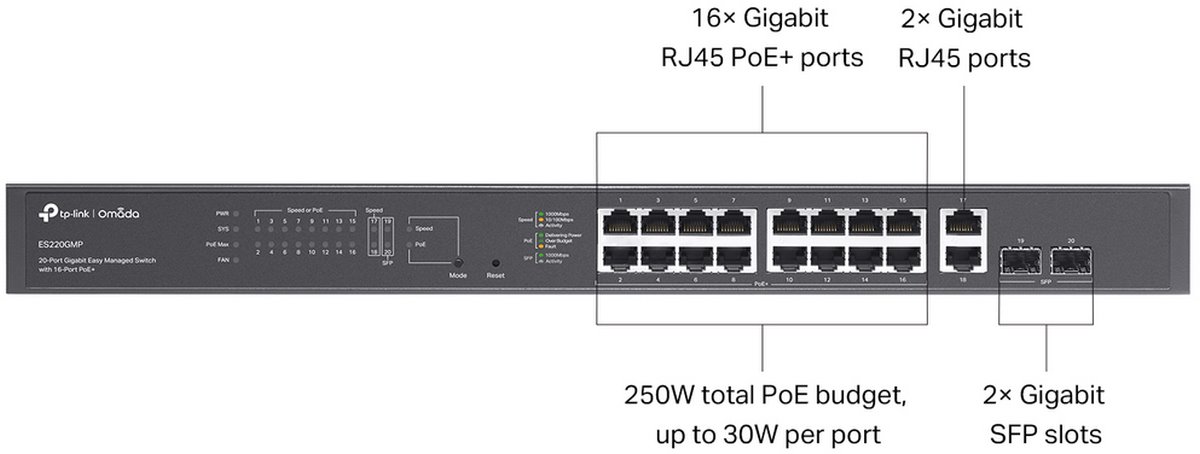

- 16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
- 2× Gigabit RJ45 port, 2× Gigabit SFP port
- 250W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 250m PoE with 10Mbit speed, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Download
Technical parameters
LAN ports
Design
Desktop, Rackmount
Switchning capacity [Gbps]
40
MAC address table
8000
Jumbo frame [Bytes]
15000
Packet forwarding rate [Mpps]
29,8
Web management
Yes
Management
Omada controller, Web management
Features
DHCP snooping, L2, QoS, VLAN
Power type
Mains power (230V)
Fans
Yes
LAN ports
18
LAN speed
(18) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
2
Optical interfaces
(2) 1000Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
16
PoE budget [W]
250
Long range PoE - up to 250m
Yes
Max. power consumption [W]
40
Chassis design
Metal
Power via connector/terminal
100-240 V AC~50/60 Hz
Buttons
Reset
Operating temperature [°C]
-5 up to 50
Width [mm]
440
Height [mm]
44
Depth [mm]
180
