RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 17dBi, 60°

RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 17dBi, 60°
Your price incl. VAT (20.0%)
392.99 EUR
Ordered for stock
Delivery Planned Delivery Date by Courier to you 09-07-2025
RF elements
Manufacturer
RF elements
Product number
AH60WB
Product Code
RL029.117
Warranty
24 months

Having a question?
You have a choice of 3 variants
RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 18,5dBi, 45°
AH45WB
327.49 EUR excl. VAT
RF elements Asymmetrical Horn Wideband Antenna, 6/5 GHz, 15dBi, 90°
AH90WB
327.49 EUR excl. VAT
RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 17dBi, 60°
AH60WB
327.49 EUR excl. VAT
RF elements ePMP b TwistPort adaptor for Cambium 4600L, 4600C
RF elements ePMP b TwistPort adaptor for Cambium 4600L, 4600CTPA-EPMP-B-6
38.11 EUR excl. VAT
Add to Cart
RF elements TPA-SMA TwistPort adaptor for 6Ghz with 2x RP-SMA connectors
RF elements TPA-SMA TwistPort adaptor for 6Ghz with 2x RP-SMA connectorsTPA-SMA6
19.06 EUR excl. VAT
Add to Cart

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
Designed for mast diameter [mm]
40 up to 80
Wireless frequency
5 GHz, 6 GHz

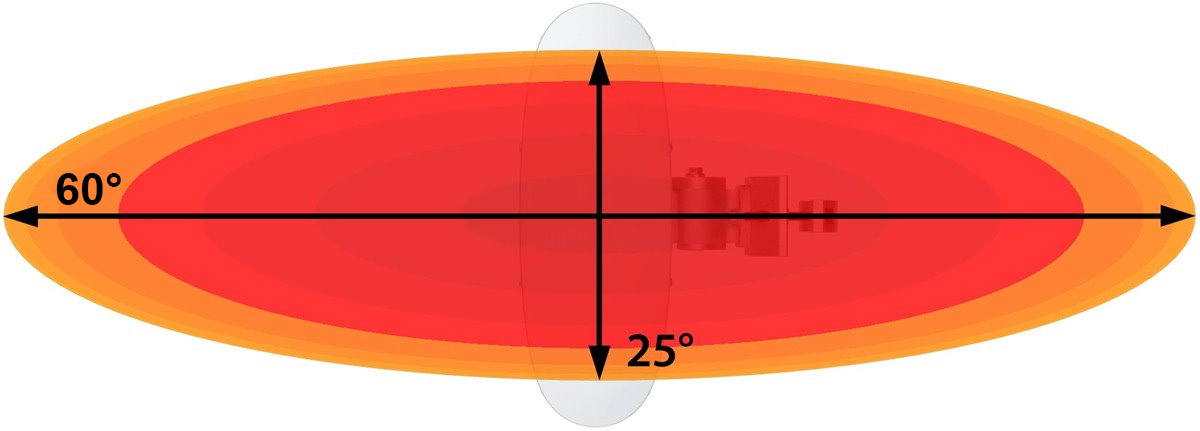

Azimuth beam width (-6dB) [°]
60
Elevation beam width (-6dB) [°]
25
Antenna type
Sector
RF connectors
TwistPort
Purpose
Outdoor
Antenna gain [dBi]
17

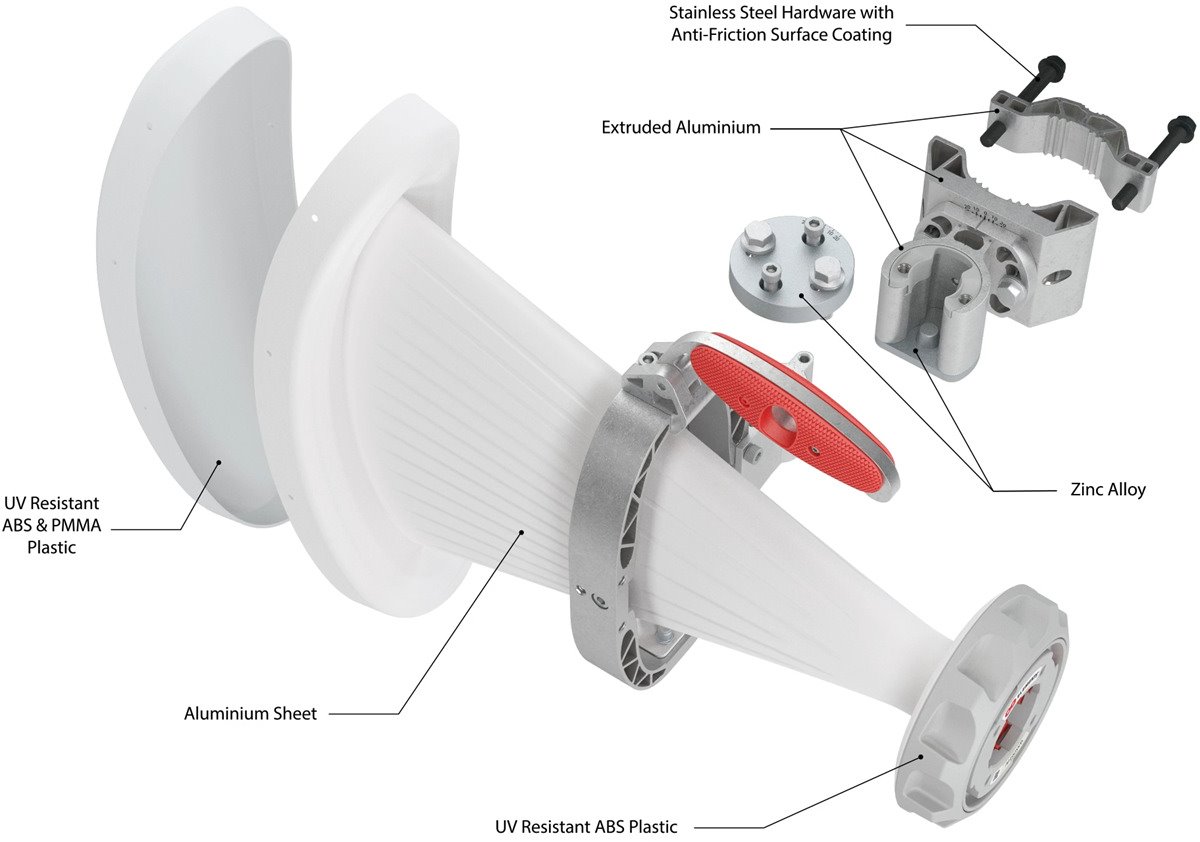

Material
ABS plastic, Aluminum, Zinc alloy
Depth [mm]
450
Width [mm]
316
Height [mm]
334
