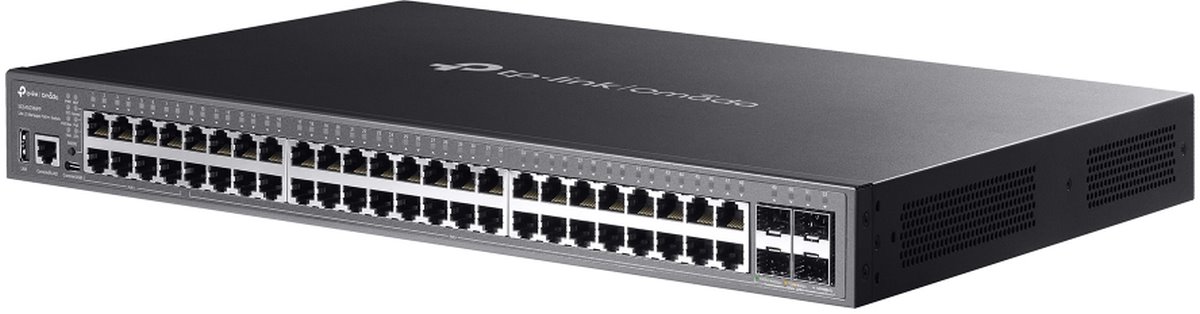

TP-Link SG5452XMPP - Omada 48-port Gigabit stackable Lite L3 managed PoE++ switch with 4× 10G SFP+ slots

Product description

Omada SG5452XMPP is a dependable entry-level L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts up to 770W PoE budget, 48× gigabit RJ45 ports (8× PoE++, 40× PoE+), 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452XMPP offers a reliable networking solution for SMEs, and ISPs.

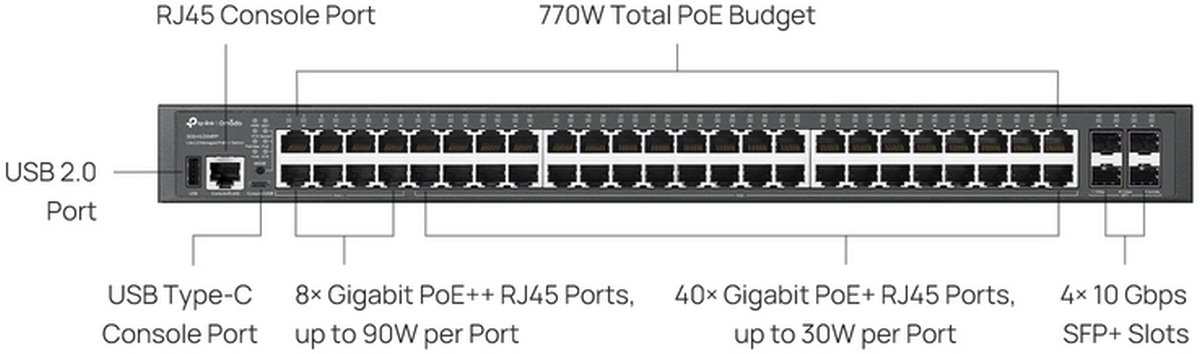

Key features

• 8× Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
• 40× Gigabit 802.3af/at PoE+ ports (Max 30W per port)
• 4× 10 Gbps SFP+ slots
• Up to 770W total PoE budget
• Fast PoE and Perpetual PoE
• Physical stacking up to 4 units for built-in redundancy and performance
• L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
• Security strategies: ACL, Port Security, DoS Defend, 802.1X
• ERPS supports rapid protection and recovery in a ring topology
• Centralized cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON

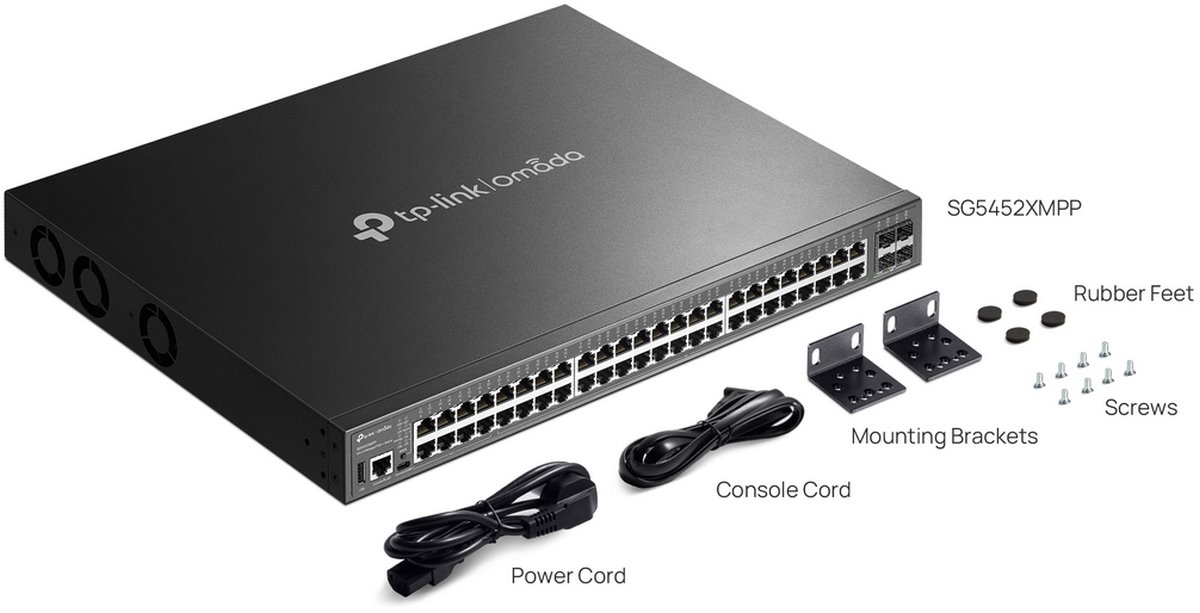

Package contents

Download

https://download.discomp.cz/TP-LINK/Datasheets/SG5452XMPP(UN)_1.0_datasheet.pdf

Datasheet

https://download.discomp.cz/TP-LINK/QSG/SG5452XMPP_IG.pdf

Installation Guide
