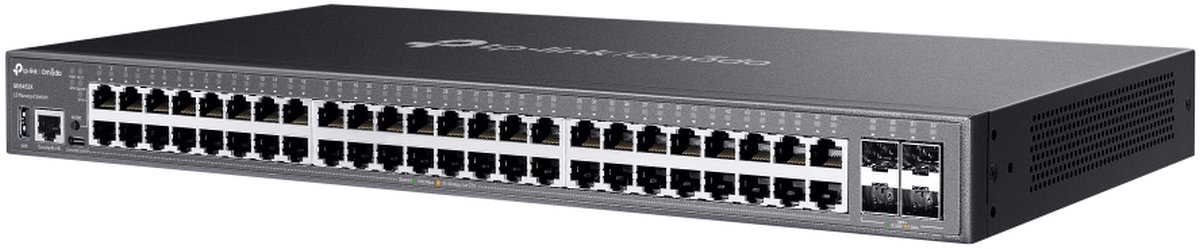

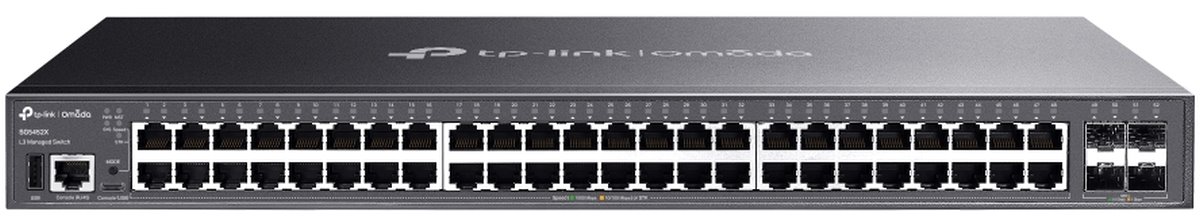

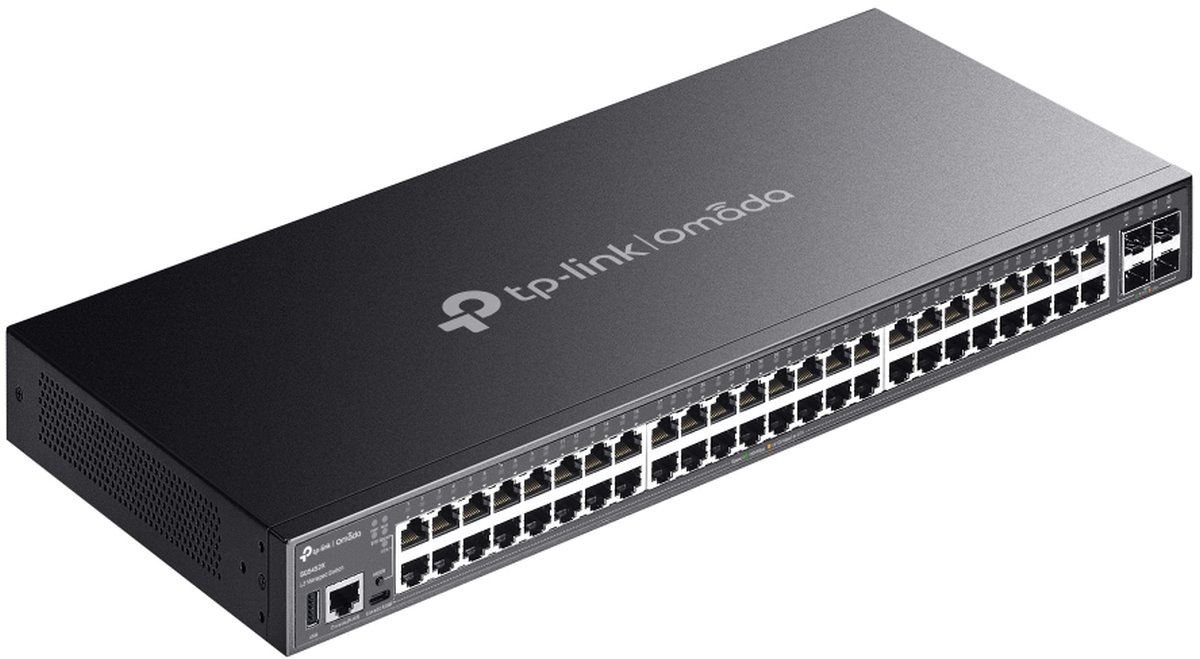

TP-Link SG5452X - Omada 48-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G SFP+ Slots
Your price incl. VAT (20.0%)
871.57 EUR
Ordered for stock
No confirmed delivery date
You have a choice of 2 variants
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
13.05 EUR excl. VAT
10.53 EUR excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
13.05 EUR excl. VAT
6.21 EUR excl. VAT
425.78 EUR excl. VAT
801.46 EUR excl. VAT
Product description
Omada SG5452X is a dependable entry-level L3 managed switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts with 48× gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452X offers a reliable networking solution for SMEs, and ISPs.
Key features

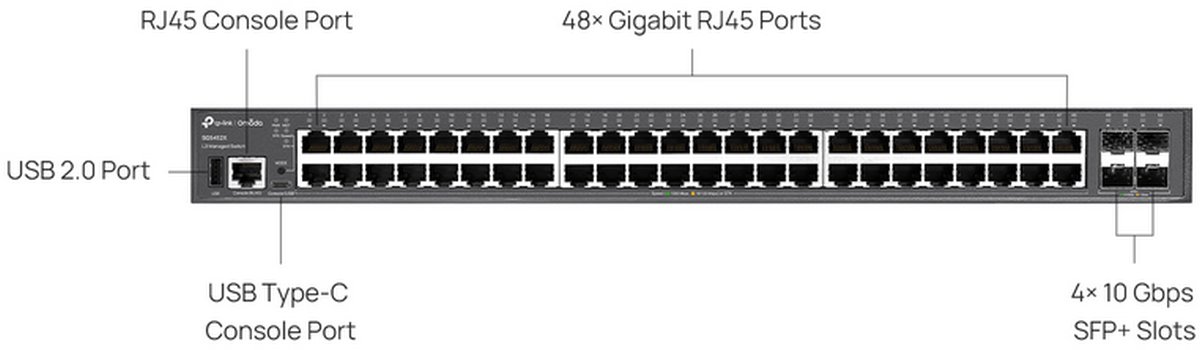

- 48× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 4× 10 Gbps SFP+ slots
- Physical stacking up to 4 units for built-in redundancy and performance
- L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
- Security strategies: ACL, Port Security, DoS Defend, 802.1X
- ERPS supports rapid protection and recovery in a ring topology
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON

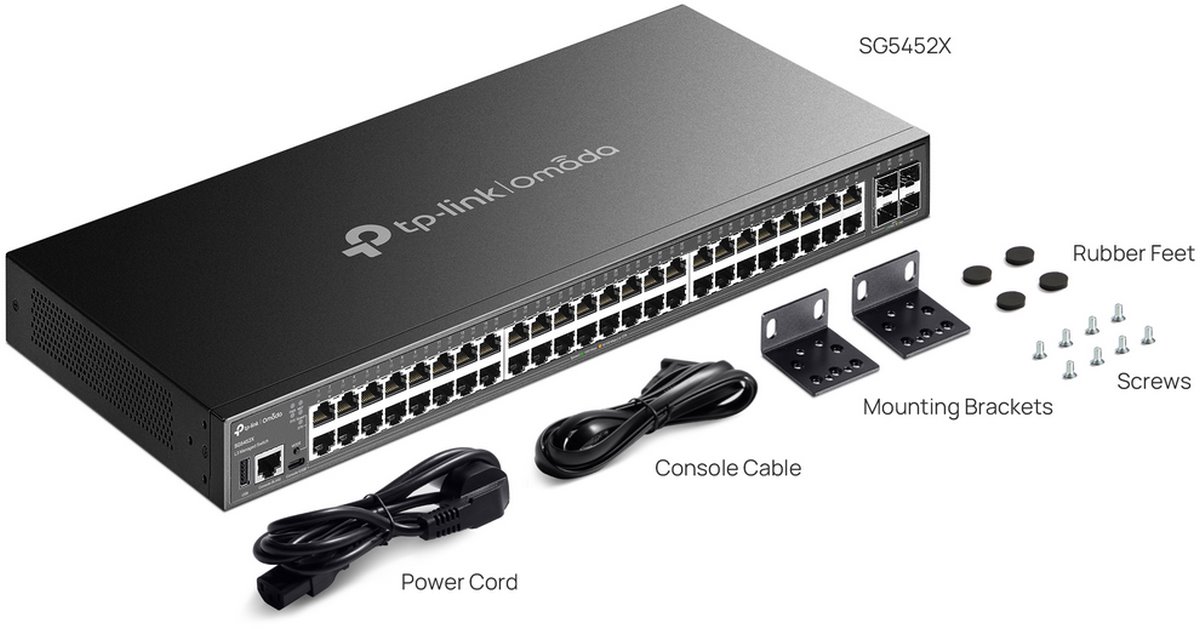

Package contents
Download
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
176
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
131
Web management
Yes
Management
Web management, Omada controller
Features
L3, VLAN, QoS, Physical stacking, DHCP snooping
Power type
Mains power (230V)
Fans
No
LAN ports
48
LAN speed
(48) 10/100/1000Mbps
Max. LAN ports speed
1G
SFP+ cages
4
Optical interfaces
(4) 10Gbps
Max. power consumption [W]
35
Chassis design
Metal
USB ports 2.0
1
Power via connector/terminal
100-240 V AC~50/60 Hz
Buttons
Switch mode
Operating temperature [°C]
-5 up to 45

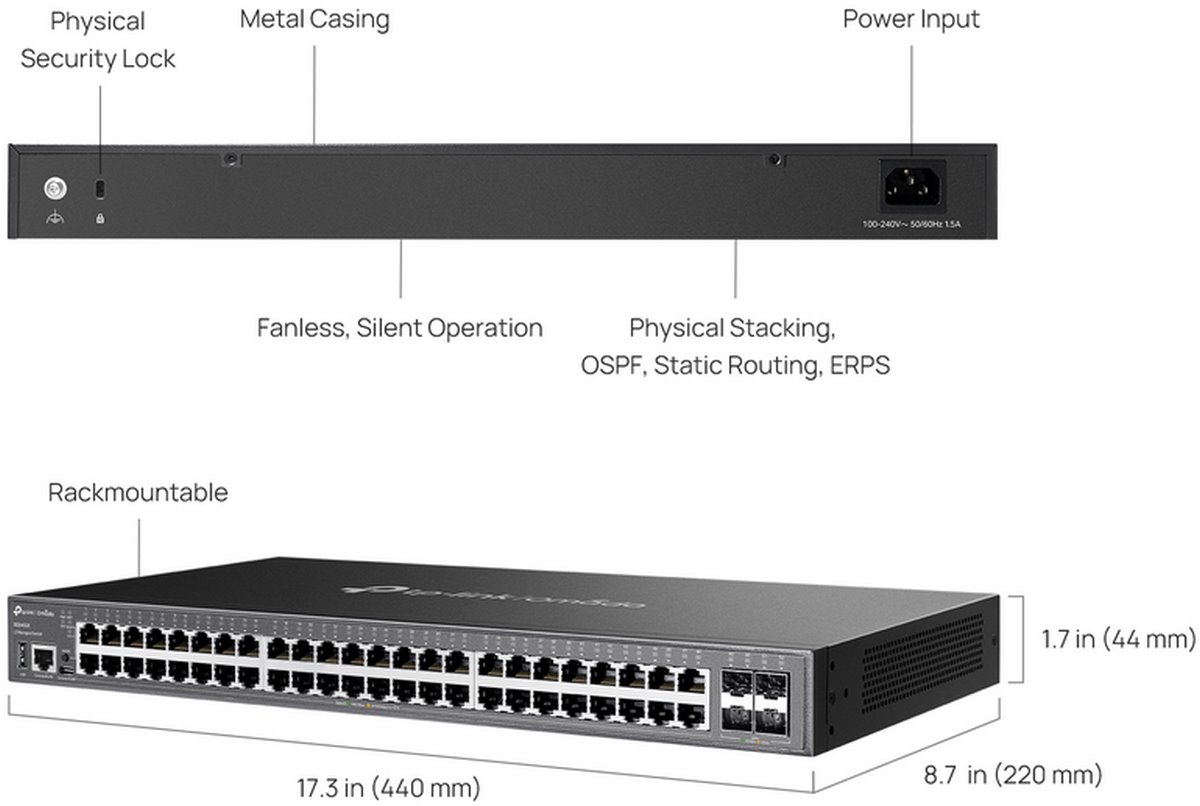

Width [mm]
440
Height [mm]
44
Depth [mm]
220
Default IP address
192.168.0.1
Default login and password
admin / admin
