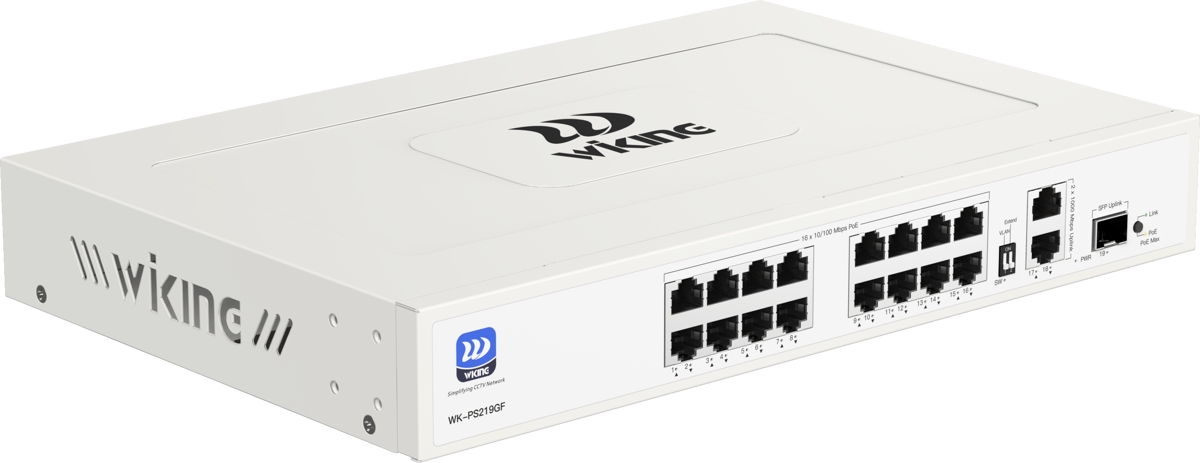

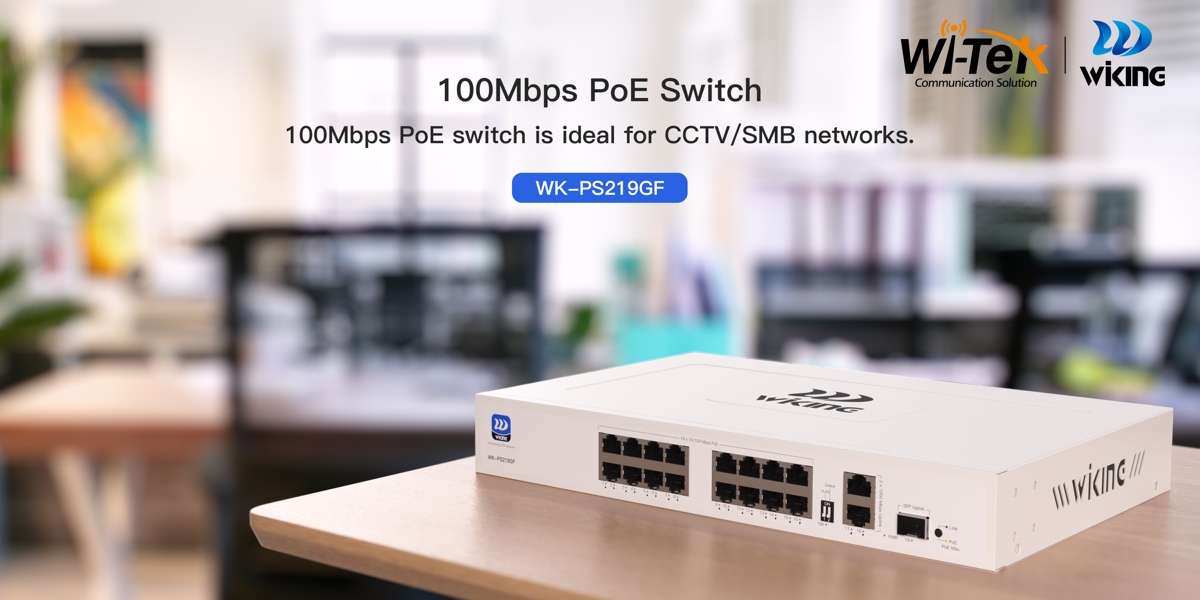

Wiking WK-PS219GF 16x PoE+ Switch, 180W

Product description

The Wiking WK-PS219GF is a reliable unmanaged PoE L2 switch with a switching capacity of 9.2Gbps, (16) 10/100Mbps PoE ports, (2) 1Gbit uplink ports and (1) SFP uplink slot. The downlink ports support PoE with a 180W budget. The switch is ideal for CCTV installations thanks to PoE, automatic IP camera reboot in case of connection failure and the option to extend the transmission distance of PoE ports up to 250m. The switch consumes 10W (without load).

Key features

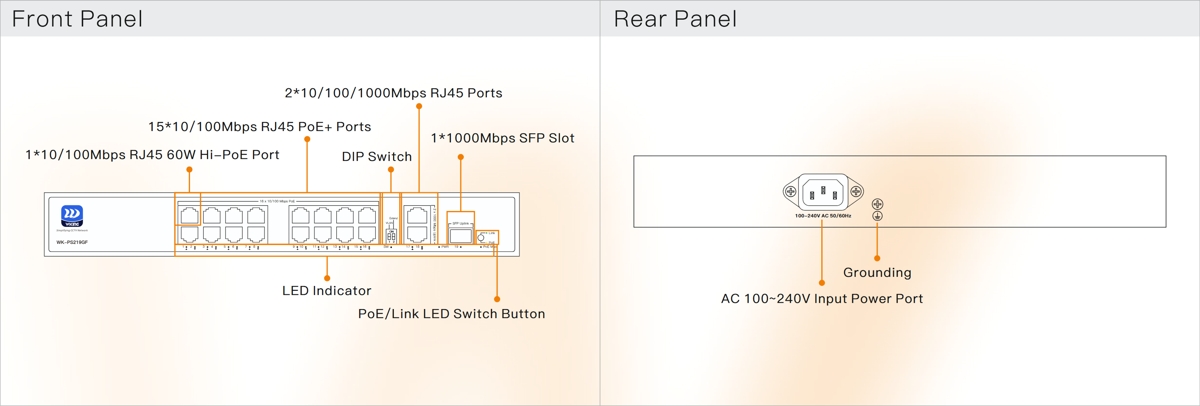

• (16) 10/100Mbps PoE ports, (2) 1Gbit uplink ports and (1) SFP uplink slot
• Plug & Play - no configuration needed
• Passive cooling - silent operation, suitable for office environments
• PoE with a total budget of 180W

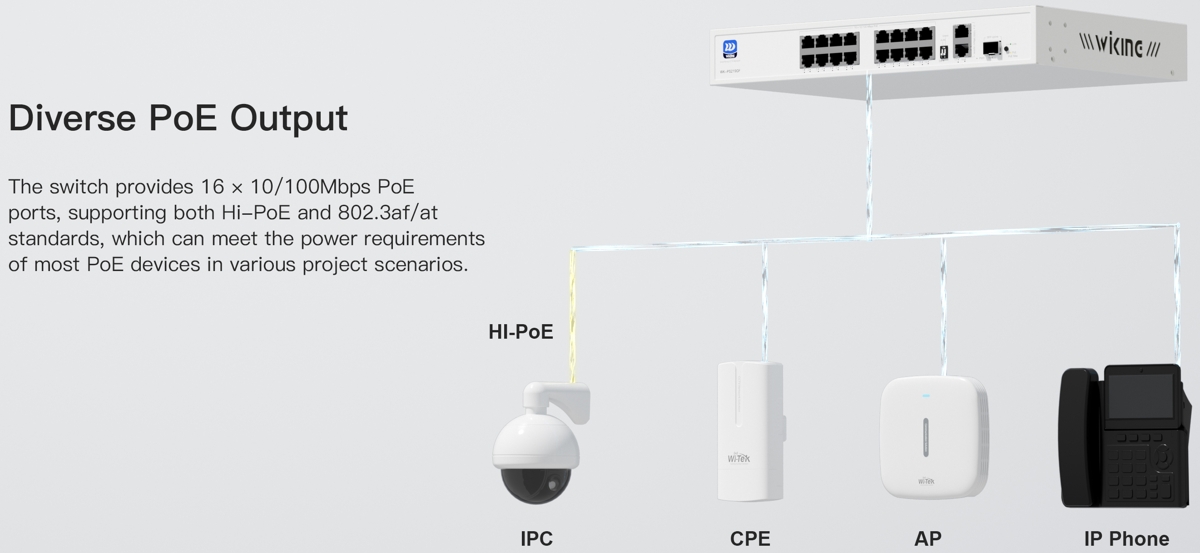

  • Port 1 supports Hi-PoE with power output of up to 60W
  • Ports 2-16 supports 802.3af/at PoE+
• The DIP switch controls the following modes:

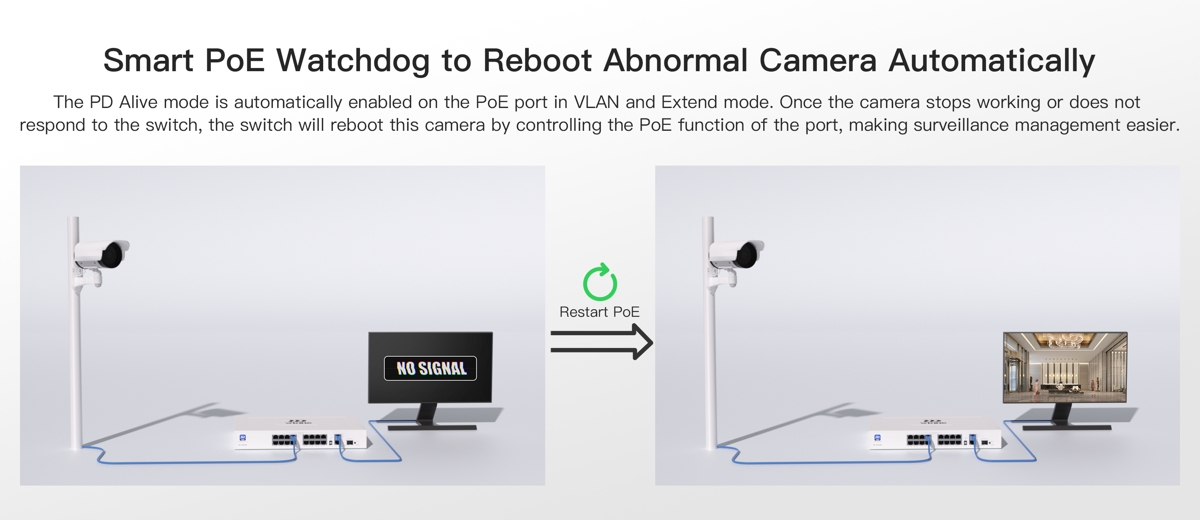

  1. VLAN - enables port isolation, where each PoE port can transmit data only to the uplink ports, and the PD Alive function, which automatically reboots dropped or unresponsive PoE devices

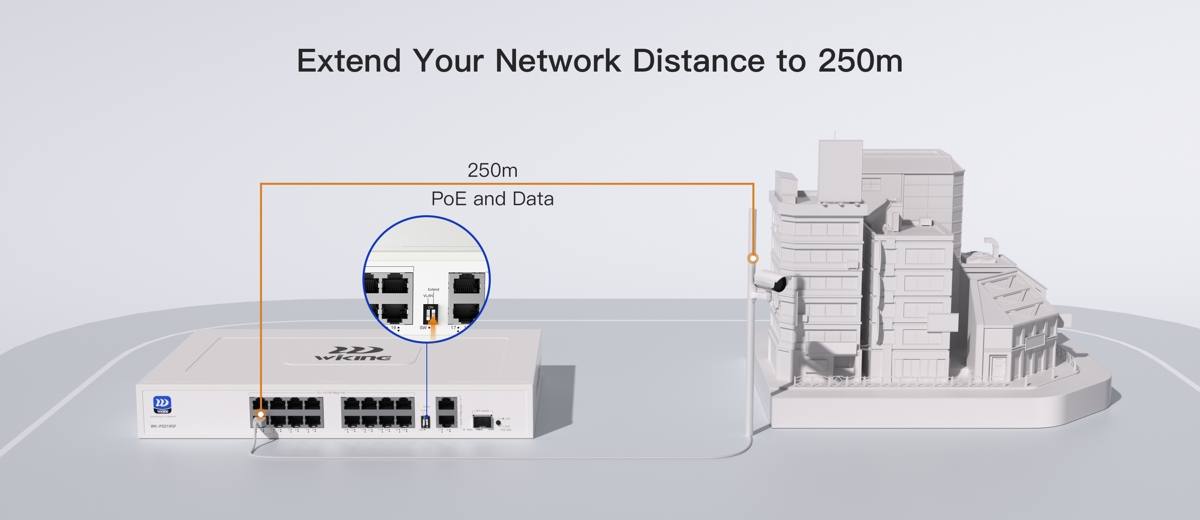

  2. Extend - extends the transmission distance of PoE ports up to 250m at 10Mbps and enables the PD Alive function, which automatically reboots dropped or unresponsive PoE devices

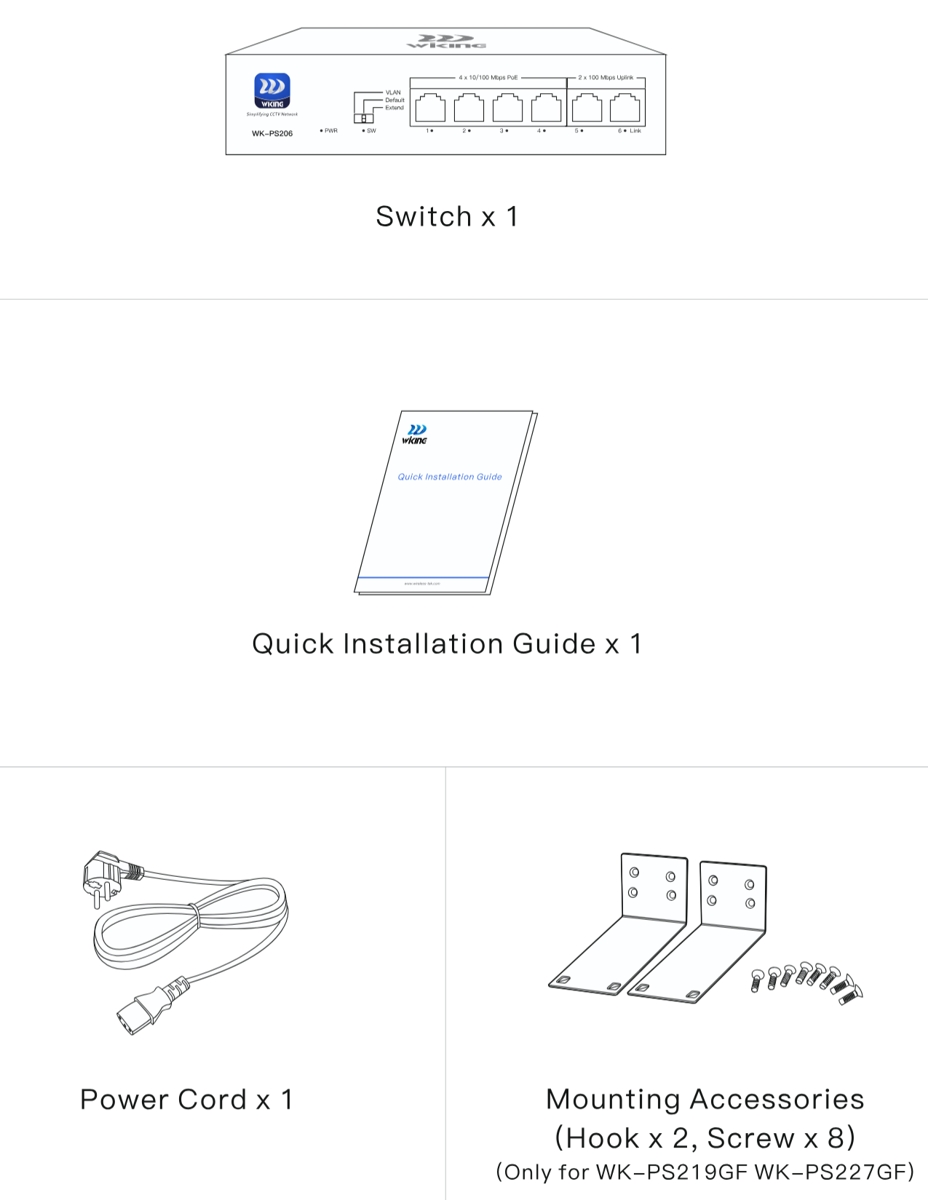

Package Contents

• Device
• AC power cord
• Rack mounting kit
• Quick Installation Guide

Download

https://download.discomp.cz/WiTek/QIG/WK-PS206_WK-PS210_WK-PS219GF_WK-PS227GF_WK-PS305_WK-PS310-QIG.pdf

Quick Install Guide

https://download.discomp.cz/WiTek/Datasheets/WK-PS219GF_WK-PS227GF_Datasheet_V3.0_20250516.pdf

Datasheet
