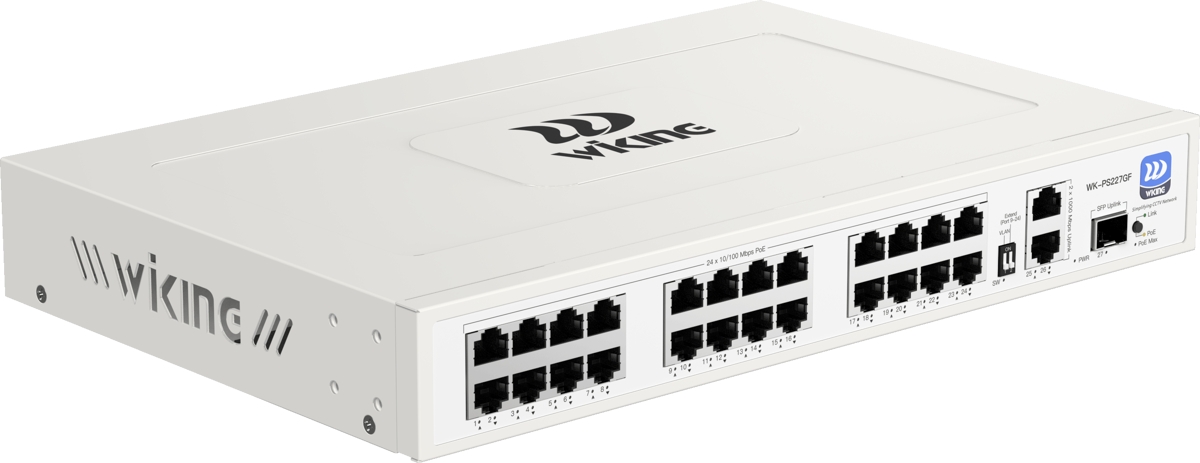

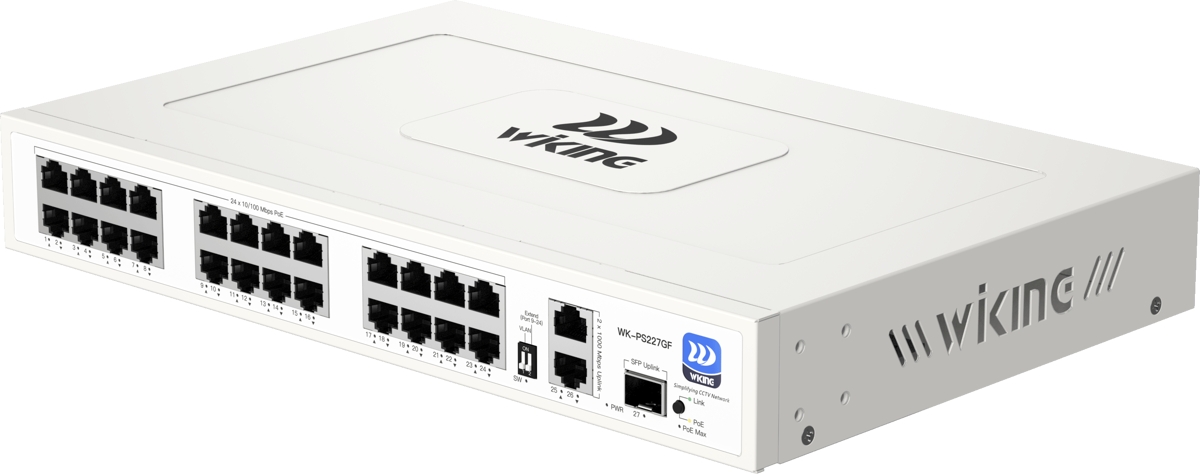

Wiking WK-PS227GF 24x PoE+ Switch, 270W
Your price incl. VAT (20.0%)
95.76 EUR
✅ In Stock 40+ Бр.
Planned Delivery Date by Courier to you 25-02-2026
You have a choice of 2 variants
4.52 EUR excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDMML-S3155-20
4.40 EUR excl. VAT
4.62 EUR excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDMML-S5531-20
6.01 EUR excl. VAT
Product description

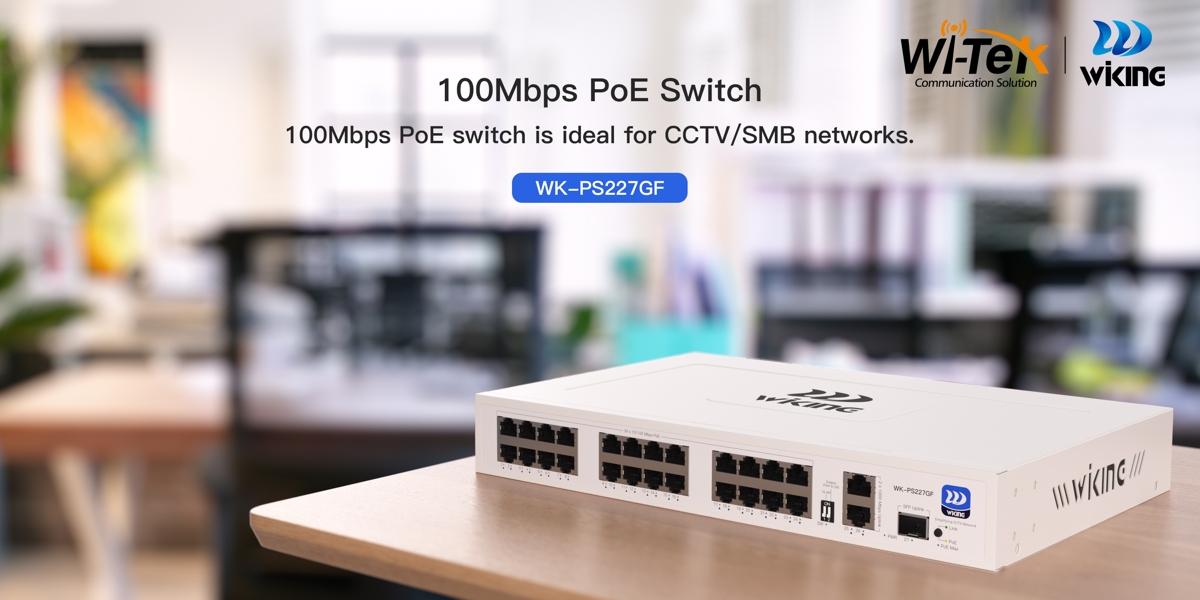

The Wiking WK-PS227GF is a reliable unmanaged PoE L2 switch with a switching capacity of 10.8Gbps, (24) 10/100Mbps PoE ports, (2) 1Gbit uplink ports and (1) SFP uplink slot. The downlink ports support PoE with a 270W budget. The switch is ideal for CCTV installations thanks to PoE, automatic IP camera reboot in case of connection failure and the option to extend the transmission distance of PoE ports up to 250m. The switch consumes 10W (without load).
Key features

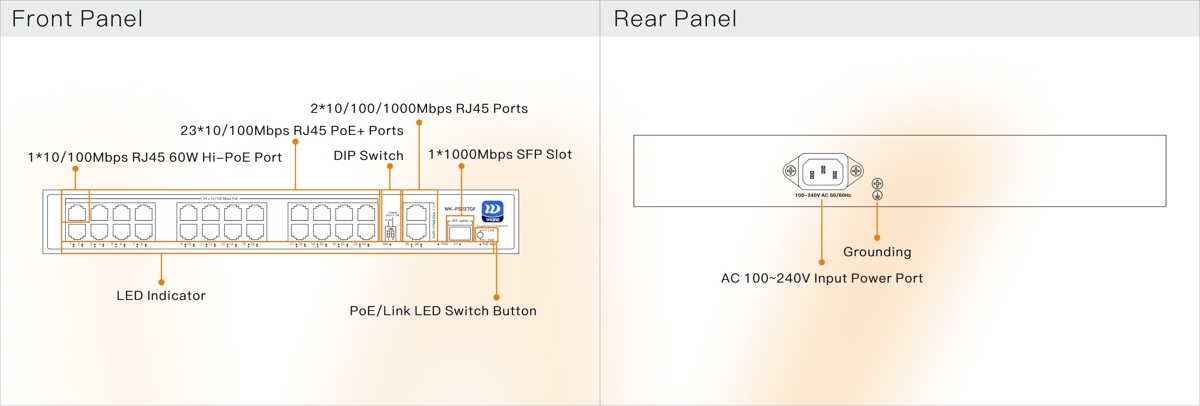

- (24) 10/100Mbps PoE ports, (2) 1Gbit uplink ports and (1) SFP uplink slot
- Plug & Play - no configuration needed

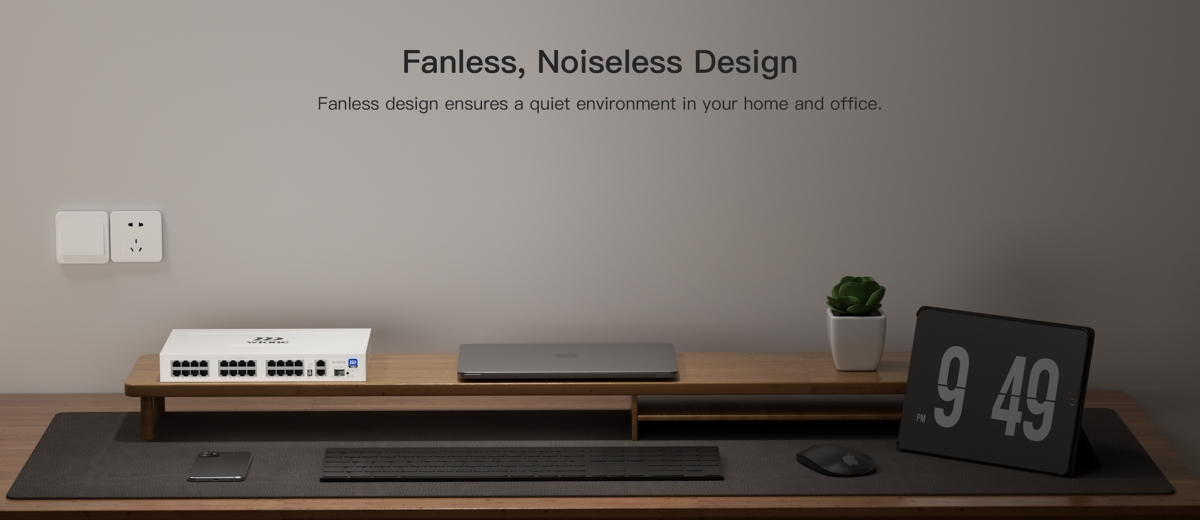

- Passive cooling - silent operation, suitable for office environments
-

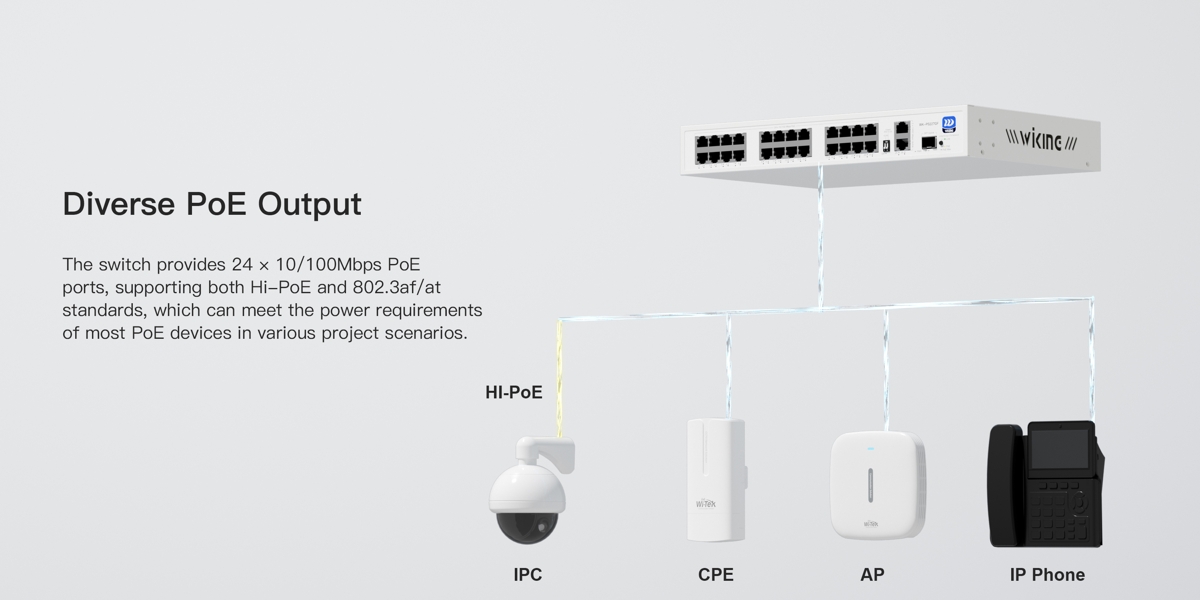

PoE with a total budget of 270W
- Port 1 supports Hi-PoE with power output of up to 60W
- Ports 2-24 supports 802.3af/at PoE+
-
The DIP switch controls the following modes:

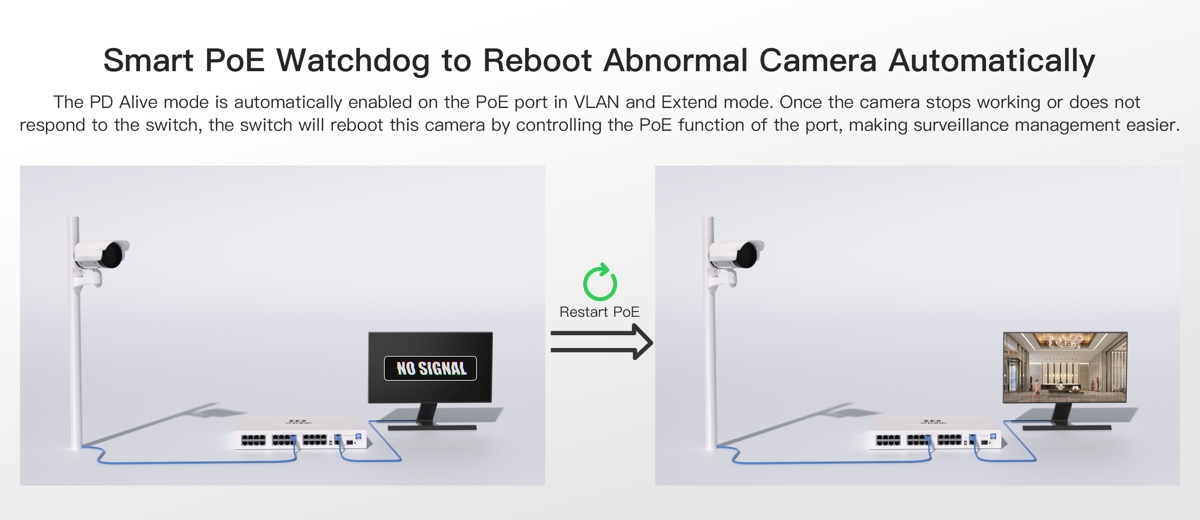

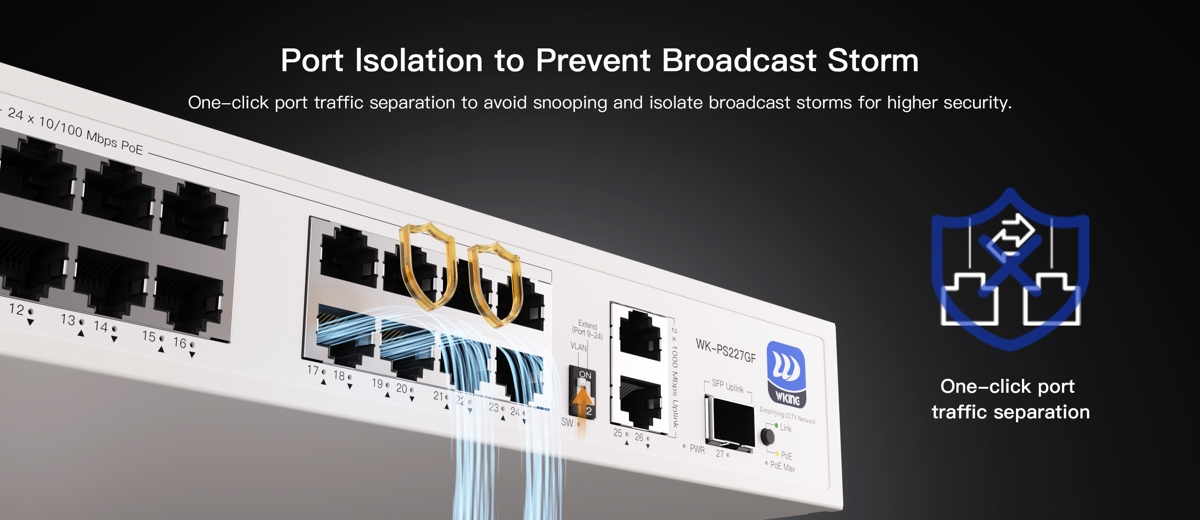

- VLAN - enables port isolation, where each PoE port can transmit data only to the uplink ports, and the PD Alive function, which automatically reboots dropped or unresponsive PoE devices
- Extend - extends the transmission distance of PoE ports up to 250m at 10Mbps and enables the PD Alive function, which automatically reboots dropped or unresponsive PoE devices

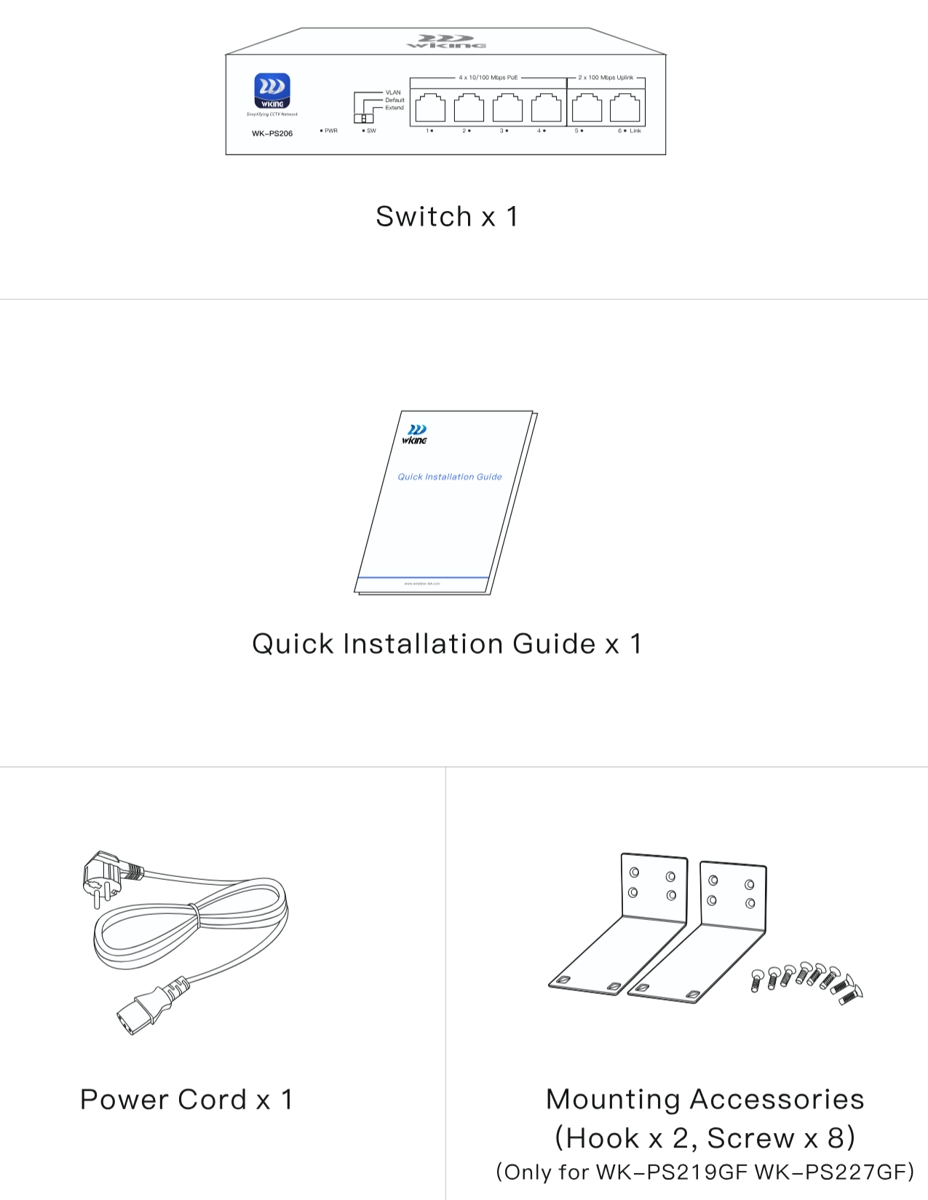

Package Contents
- Device
- AC power cord
- Rack mounting kit
- Quick Installation Guide
Download
Technical parameters
LAN ports
Power type
Mains power (230V)
LAN ports
26
SFP cages
1
PoE-Out standards
802.3af, 802.3at
Max. power consumption [W]
280
Weight [g]
1790
Width [mm]
320
Height [mm]
45
Depth [mm]
207
