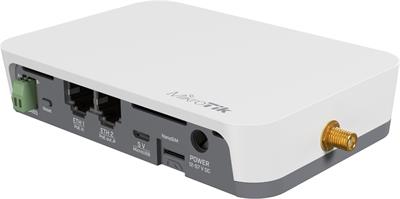

MikroTik RB924iR-2nD-BT5&BG770A&R11e-LR9G, KNOT LR9G kit

Power over Ethernet

802.3af, 802.3at, 18 .. 57V DC

Sensitivity [dBm]

-96

Design

On the wall, Desktop, DIN rail

Wireless frequency

2.4 GHz, LTE, Bluetooth, GNSS, 915 MHz

WiFi standards

802.11n, 802.11a, 802.11b/g

Transmission speed - 2.4GHz [Mb/s]

300

Tx power 2.4GHz [dBm]

22

2.4GHz MIMO

2 x 2

Type of antenna

Built-in, Detachable

Detachable antennas

3

Internal antennas

2

RF connectors

(3) SMA female

Antenna gain [dBi]

< 2

Power type

DC connector, PoE, USB (5V)

4G/LTE bands support

(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (4) 1700 MHz, (8) 900 MHz, (20) 800 MHz, (5) 850 MHz, (12) 700 MHz, (17) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (28) 700 MHz, (66) 1700 MHz, (13) 700 MHz, (18) 850 MHz, (19) 850 MHz, (27) 800 MHz

Operating system

RouterOS v7 - L4

Fans

No

LAN ports

2

LAN speed

(2) 10/100Mbps

PoE type

PoE-Out + PoE-In

PoE Out ports

1

Max. power consumption [W]

23

Chassis design

Plastic

Serial port

RS-485

Power via connector/terminal

12 .. 57V DC

Operating temperature [°C]

-40 up to 70

Height [mm]

26

Width [mm]

122

Depth [mm]

87

CPU

QCA9531

CPU frequency [MHz]

650

CPU cores

1

MiniPCI-e slots

1

SIM slots quantity

1

SIM slot

Yes

USB

Yes

Internal storage [MB]

128

Default IP address

192.168.88.1

Default login and password

admin / -

RAM [MB]

64

GPS modul

Yes
